Controller Harmony

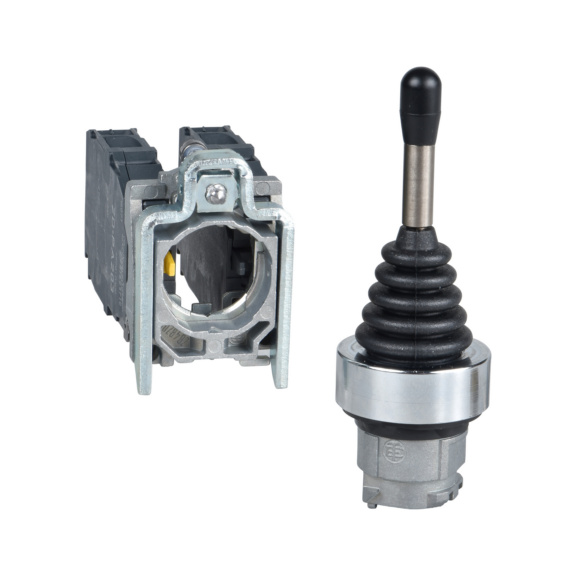

JOYSTICK 4-DIR 1NO XD4PA24 HARMONY
SCHNEIDER ELECTRIC
With registration you can access the Würth Elektro online shop selection.
Manipulators XD2
- Compact and very durable joysticks for versatile purposes.
- Thanks to the huge range of configurations, they are suitable for the most diverse purposes.
- 2 or 4 directions of movement
- Diameter 22 or 30 mm
- IP40, IP65 or IP66
- Lifting and material handling applications
- When connected to the automation systems devices, they ensure the start, acceleration and braking of the drive motors
Datasheets(X)
 | |
Rated operation current Ie at AC-21, 400 V | 10 A |

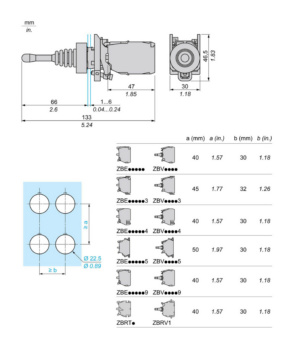

Centre mounting, hole diameter | 22 mm |
Joy stick length | 54 mm |
Number of actuation directions | 4 |
Number of switch positions | 4 |
Number of normally open contacts per actuation direction | 1 |
With retraction in 0-position | Yes |
Locking in 0-position | No |
Coder | No |
Analogue output signal configurable | No |
With front ring | Yes |
Material front ring | Metal |
Colour front ring | Chrome |
Degree of protection (IP) | IP66 |
Degree of protection (NEMA) | Other |
E-number Finland | 2319665 |
Brand | SCHNEIDER ELECTRIC |
