Plastic enclosure 44 CE-series GWTPLAST 75
JUNCTION BOX 100X100X50 IP55 GW44054
GEWISS
With registration you can access the Würth Elektro online shop selection.
A versatile halogen-free enclosure with quick inlets for cables (Ø 4–14 mm) and conduits (Ø 16, 20 and 25 mm). Two 6×4 mm mounting holes at the base, which enable mounting with cable ties to, for example, a mesh cable tray.
Suitable for applications requiring a CWT value of at least 850 °C according to EN 60670 and IEC 60670, such as raised floors and suspended ceilings.
Note: use insulating screw caps to double-insulate the enclosure and restore the original ingress protection.
Datasheets(X)
 | |
Equipped with | None |
Shape | Square |
Mounting method | Wall-/ceiling mounting |
Mounting in the soil | No |
Mounting under water | No |
For tube diameter | Other |
Inlet from the rear | No |

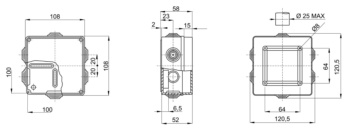

Length | 120.5 mm |
Width | 120.5 mm |
Depth | 58 mm |
Connectable | No |
Number of inlets | 6 |
Type of housing feed-through | Trimmable step membrane |
Material | Plastic |
Halogen free | No |
Surface protection | Untreated |
Colour | Grey |
Degree of protection (IP) | IP55 |
Cover model | Blind cover |
Transparent cover | No |
Cover attachment | Screwed |
Castable | No |
Casting compound included | No |
Sealable | No |
Circuit integrity | None |
With screening | No |
Weatherproof | No |
Operating temperature | -25-60 °C |
Explosion-tested version | No |
For Ex-zone gas | None |
For Ex-zone dust | None |
E-number Finland | 3466695 |
Brand | GEWISS |
