Apparatus box AU8.73, flush mount
JUNCTION BOX AU8.73
ABB
With registration you can access the Würth Elektro online shop selection.

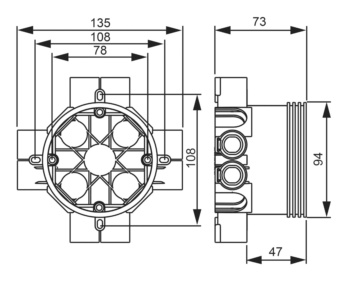

The high junction box AU8.73 has been specially developed for the needs of prefabricated and on-site casting sites. Box height 73 mm. Its height guarantees that the piping can be made above the reinforcement without additional cumbersome work. The junction box AU8.73 has eight Ø 20 inlets on the sides with locking springs. The box also has knock-outs for 4 side inlets and 4 bottom inlets. The box can be fixed to the mold with a installation plug AS25. The box contains screw rods for M4 and Ø3.5 mm chipboard screws. Made of halogen-free materials (IEC/61249-2-21).
Datasheets(X)
Mounting method | Built-in |
Shape | Round |
Construction type | Cable junction box |
Model | Single |
Provided with revolving ring | No |
Couplable | No |
Equipped with | None |
For number of electric fittings | 1 |
Mounting switching equipment | Screwing |
With screws | No |
Housing feed-through by break-out opening | Yes |
Housing feed-through by seal membrane | No |
Housing feed-through by nozzle | Yes |
Housing feed-through by step membrane | No |
For tube diameter | 20/25 mm |
Pipe locking | Yes |
Pipe locking optional | No |
Inlet from the rear | Yes |
Number of inlets | 8 |
Number of included spouts | 8 |
Material | Plastic |
Halogen free | Yes |
Surface protection | Untreated |
Colour | White |
Degree of protection (IP) | Other |
Sealable | No |
Circuit integrity | None |
With screening | No |
Number of poles of the clamp | 0 |
Clamp position fixed | No |
Luminaire hook mounting | No |
Nozzle | None |
With nail lugs | Yes |
