Junction box SIL
JUNCTION BOX IP44 2,5MM2
SELCAST
With registration you can access the Würth Elektro online shop selection.
Metal junction box, surface-mounted
Datasheets(X)

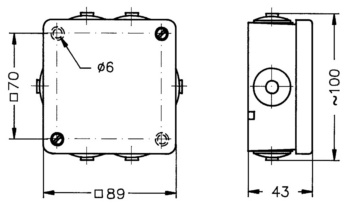

Length | 89 mm |
Width | 89 mm |
Depth | 43 mm |
Extension possible | No |
Number of inlets | 6 |
Type of inlet | Cable |
Material | Aluminium |
Halogen free | Yes |
Surface protection | Untreated |
Degree of protection (IP) | IPX4 |
With cover | Yes |
Cover attachment | Screwed |
With transparent cover | No |
Rated insulation voltage Ui | 400 V |
Circuit integrity | None |
Explosion-tested version | No |
For Ex-zone gas | None |
For Ex-Zone dust | None |
E-number Finland | 1623971 |
Brand | SELCAST |
