Surface-mounted junction box AP75 IP65, plastic
JUNCTION BOX IP65 AP75
ABB
With registration you can access the Würth Elektro online shop selection.
Junction box AP75 (2.5 mm², 450 V, protection class IP65) is a rigid-frame box with fixed insulating glands (10 pcs in sides, 3 pcs in base). Suitable for cables up to Ø 18 mm. Cover fastened by pressing and opened by twisting the cover grooves with a screwdriver. The box is also sealable. Installation temperature –15...+60 °C. Made of halogen-free materials (IEC/61249-2-21).
Datasheets(X)
Equipped with | None |
Shape | Square |
Mounting method | Universal |
Inlet from the rear | Yes |

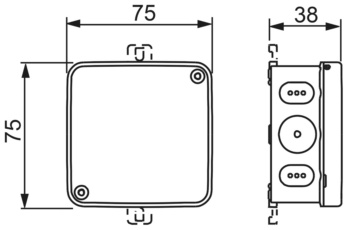

Length | 75 mm |
Width | 75 mm |
Depth | 38 mm |
Number of inlets | 13 |
Type of housing feed-through | Seal membrane |
Material | Plastic |
Halogen free | Yes |
Surface protection | Untreated |
Colour | White |
Degree of protection (IP) | IP65 |
Cover model | Blind cover |
Cover attachment | Snapped on |
Castable | No |
Sealable | Yes |
Rated insulation voltage Ui | 400 V |
Circuit integrity | None |
With screening | No |
Weatherproof | Yes |
Operating temperature | -15-60 °C |
