Kalei nut
zinc-plated steel
KALEI SELF CLINCH NUT FZB M2,5 0,9
With registration you can access the Würth Elektro online shop selection.
Kalei nuts are installed in drilled or pierced holes.
The strong slotting of the nut collar provides the connection with high torsion accuracy.
Precisely crafted, KALEI nuts are suited for
automatic feeding.
Datasheets(X)
 | |

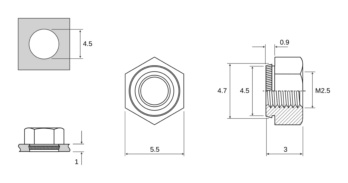

Thread type x nominal diameter (d) | M2.5 |
External collar diameter (D) | 4.7 mm |
Height (H) | 3 mm |
Installation depth (h) | 0.9 mm |
External drive (E) | WS5.5 |
Min. material thickness (s) | 1 mm |
Material thickness | 1 mm |
Internal collar diameter (d2) | 4.5 mm |
Drill hole diameter | 4.5 mm |
Material | Steel |
Surface | Zinc plated |
