Wall luminaire IP54 Bulkhead

Suitable for wall mounting

Yes

Suitable for suspended mounting

No

Suitable for built-in mounting

No

Suitable for surface mounting

Yes

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

No

Lamp type

LED not exchangeable

With light source

Yes

Housing material

Plastic

Housing colour

White

Material cover

Plastic, opal

Voltage type

AC

Nominal voltage

220-240 V

Nominal current

105-105 mA

Type of control gear

LED operating device current-controlled

With control gear

Yes

Exchangeable control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

Dimming DALI

No

Dimming DMX

No

Dimming DSI

No

Dimming potentiometer (integrated)

No

Dimming LineSwitch

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off

No

Dimming phase cut-on

No

Dimming programmable

No

Dimming RF

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

No dim function

Yes

Light distributor

Diffuser lens/optic/panel

Light sharing

Symmetric

Light outlet

Direct

Rated life time L70/B50 at 25 °C

30000 h

Degree of protection (IP)

IP54

Impact strength

IK06

Protection class

II

Rated ambient temperature according to IEC 62722-2-1

-20-40 °C

Suitable for emergency lighting

No

Emergency power supply integrated

No

With movement sensor

No

With light sensor

No

Max. system power

11 W

Luminaire efficacy

76 lm/W

Colour of light

White

Colour temperature

4000-4000 K

Colour rendering index CRI

80-89

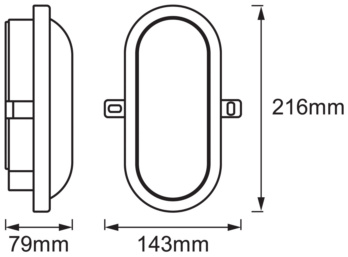

Width

143 mm

Length

216 mm

Type of wiring

Ending

Connection type

Push-in clamp

Brand

LEDVANCE
