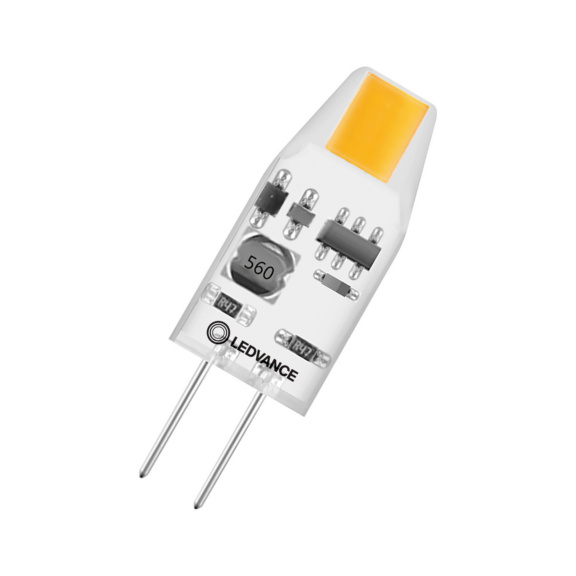

LED LAMP PIN MICRO 1W/927 100lm G4 CL
LEDVANCE
Art.-no. WS4738795
EAN 4099854762260
With registration you can access the Würth Elektro online shop selection.
36 month warranty
Datasheets(X)
 | |
Nominal voltage | 12-12 V |
Nominal current | 136-136 mA |
Power factor | 0.5 |
Lamp power | 1-1 W |
Voltage type | AC/DC |
Suitable for electronic ballast | No |
Suitable for magnetic ballast | No |
Luminous flux | 100-100 lm |
Rated luminous flux according to IEC 62612 | 100 lm |
Lamp efficacy | 100 lm/W |
Colour rendering index CRI | 90-100 |
Lamp shape | Other |
Filament lamp | No |
Material of light bulb | Plastic |
Type of glass/cover | Clear |
Colour of light according to EN 12464-1 | Warm white < 3300 K |
Socket | G4 |
Colour | Multi-coloured |
Colour temperature | 2700-2700 K |
Beam angle | 260-260 ° |
Colour consistency (McAdam ellipse) | SDCM6 |
Dimmable | No |
Dimming phase cut-off (trailing edge) | No |
Dimming phase cut-on (leading edge) | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming Bluetooth | No |
Dimming Wi-Fi | No |

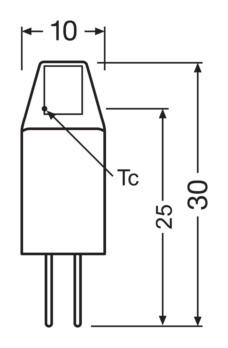

Diameter | 10 mm |
Length | 30 mm |
Degree of protection (IP) | IP20 |
Energy efficiency class according to EU regulation 2019/2015 | F |
Lamp designation | Other |
Total harmonic distortion (THD) | 109.28 % |
Min. number of switching cycles | 100000 |
Weighted energy consumption in 1000 hours | 1 kWh |
Average nominal lifetime | 15000 h |
Remote operation possible | No |
With movement sensor | No |
With remote control | No |
With twilight switch | No |
Photobiological safety according to EN 62471 | RG1 |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
IFTTT support available | No |
E-number Finland | 4738795 |
Brand | LEDVANCE |
