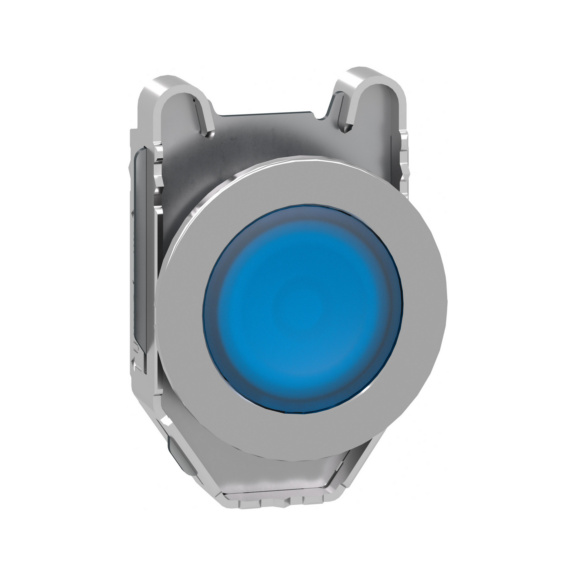

Indicator light ‒ Harmony XB4
LED - SIGNAL LAMP INDICATOR BU ZB4FV063
SCHNEIDER ELECTRIC
With registration you can access the Würth Elektro online shop selection.
- Ingress protection rating up to IP66, IP67, IP69 and IP69K, type 4X
- Operating temperature -40…+70 °C and impact resistance up to IK06
- High vibration and shock resistance, vibration-resistant terminal screws
- Multiple connection options: screw, Faston, spring, plug-in or PCB
- Wide range of contact blocks for low, constant and high currents
- Wide approvals: IEC, UL, CSA, CCC, EAC, JIS, as well as CE marking and marine approvals
Applications:
Suitable for panels and machines that require extensive versatility, a high level of protection and reliable operation in demanding environments.
Datasheets(X)
 | |
Colour lens | Blue |
Construction type lens | Round |
Type of lens | High |
Hole diameter | 30.5 mm |
With front ring | Yes |
Material front ring | Metal |
Colour front ring | Chrome |
Degree of protection (NEMA) | 4X, 13 |
E-number Finland | 2362926 |
Brand | SCHNEIDER ELECTRIC |
