Brand: FTLIGHT
SKU: WS4155736

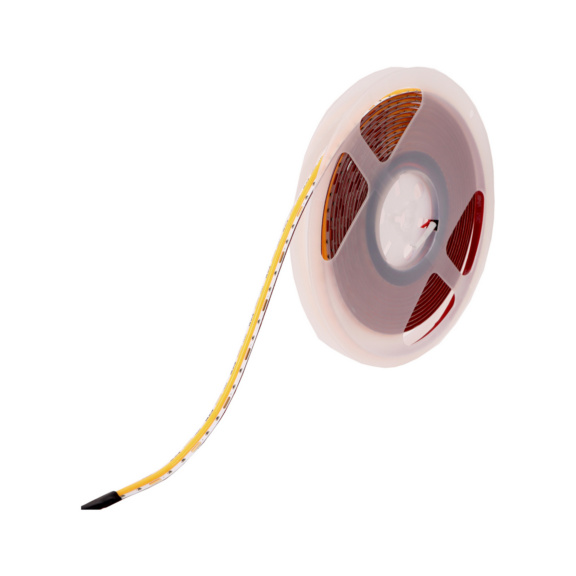

LED-STRIP ELITE 6W 380lm IP20 5M
FTLIGHT

Art.-no. WS4155736

EAN 6418536037782

All versions

Similar products

Art.-no. WS4155736

Quantity

x 1

Show availability at another Center

Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

Locate Center shop
Login/Register
Call customer service: 010 308 4700

Your feedback for this product

60 month warranty

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents

Model	Strip
Mounting method	Surface mounting
Lamp type	LED not exchangeable
Lamp power per meter	6 W
Luminous flux per meter	380 lm
Luminaire efficacy	63 lm/W
Voltage type	DC
Type of power supply	Mains power supply
Lamp voltage	12-12 V
Beam angle	130 °
Type of control gear	LED operating device voltage-controlled
Suitable for dimmer	No
Exchangeable control gear	No
Energy efficiency class of the light source according to EU regulation 2019/2015	G
Rated lifetime L70/B50 at 25 °C	50000 h
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)	70 %
Degree of protection (IP)	IP20
Protection class according to IEC 61140	III
Max. system power	30 W
Colour of light	White
Constant light output (CLO)	No
Colour temperature	2400-2400 K
Colour rendering index CRI	90-100
Colour of light adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	No
Width	8 mm
Height/depth	5 mm
Length of particular segments	25 mm
Total length	5 m
With end piece	Yes
With connection set	No
With protective cover	No
Self-adhesive	Yes
Type of wiring	Ending
Number of poles	2
Conductor cross section	0.5 mm²
Connectable conductor cross section	0.5-1.5 mm²
Connection type	Push-in clamp
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
E-number Finland	4155736
Brand	FTLIGHT

Additional accessory:

Product

Description

Quantity

Price
/packing unit

LED profile set LUMINES

LED PROF.SET LUMINES TYPE B ALU MILK

LUMINES

Art.-no. WT4000211

x 1

LED profile set LUMINES

LED PROF.SET LUMINES TYPE B WT MILK

LUMINES

Art.-no. WT4000212

x 1

LED profile set LUMINES

LED PROF.SET LUMINES TYPE B BK MILK

LUMINES

Art.-no. WT4000213

x 1

LED profile set LUMINES

LED PROF.SET LUMINES TYPE C ALU MILK

LUMINES

Art.-no. WT4000214

x 1

LED profile set LUMINES

LED PROF.SET LUMINES TYPE C WT MILK

LUMINES

Art.-no. WT4000215

x 1

LED profile set LUMINES

LED PROF.SET LUMINES TYPE C BK MILK

LUMINES

Art.-no. WT4000216

x 1

LED profile set LUMINES

LED PROF.SET LUMINES TYPE D ALU MILK

LUMINES

Art.-no. WT4000217

x 1

LED profile set LUMINES

LED PROF.SET LUMINES TYPE D WT MILK

LUMINES

Art.-no. WT4000218

x 1

LED profile set LUMINES

LED PROF.SET LUMINES TYPE D BK MILK

LUMINES

Art.-no. WT4000219

x 1

LED strip profile cap Lumines

LUMINES COVER 15X3X2020 BK

LUMINES

Art.-no. WT4000220

x 1
