LED STRIP SLC COB STD 10W IP20 940 5M
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Model | Strip |
Mounting method | Surface mounting |
Lamp type | LED not exchangeable |
Number of nodes per meter | 384 |
Lamp power per meter | 10 W |
Luminous flux per meter | 1190 lm |
Voltage type | DC |
Lamp voltage | 24-24 V |
Beam angle | 150 ° |
Type of control gear | LED operating device voltage-controlled |
Suitable for dimmer | Yes |
Rated lifetime L70/B50 at 25 °C | 100000 h |
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 80 % |
Degree of protection (IP) | IP20 |
Protection class according to IEC 61140 | III |
Colour of light | White |
Colour temperature | 4000-4000 K |
Colour rendering index CRI | 90-100 |
Colour of light adjustable | No |
Luminous flux adjustable | No |
Beam angle adjustable | No |

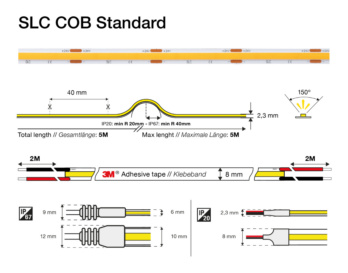

Width | 8 mm |
Height/depth | 2.3 mm |
Lowest bending radius | 20 mm |
Length of particular segments | 40 mm |
With end piece | Yes |
Self-adhesive | Yes |
Conductor cross section | 0.35 mm² |
E-number Finland | 4145808 |
