LED tube T5 HF HE MASTER LEDtube
LED tube 7W (replaces 14W) 600mm
LED TUBE T5 MASTER 600 HE 865 1050lm
PHILIPS
With registration you can access the Würth Elektro online shop selection.
Philips MASTER LEDtube InstantFit HF T5 is a high-quality LED light tube that directly replaces traditional T5 fluorescent tubes without any modifications. It is compatible with most electronic control gears and offers a lifespan of up to 60 000 hours. Excellent luminous efficacy of up to 155 lm/W and over 50% energy savings make it a cost-effective solution for demanding applications.
The LED tube is completely mercury-free, HACCP-compliant and NSF-certified, making it also suitable for use in food processing spaces. Applications: offices, schools, educational institutions, shops and other public or commercial interiors.
Datasheets(X)
 | |
Nominal voltage | 40-70 V |
Nominal current | 150-350 mA |
Power factor | 0.92 |
Lamp power | 7-7 W |
Voltage type | AC |
Luminous flux | 1050-1050 lm |
Rated luminous flux according to IEC 62612 | 1050 lm |
Lamp efficacy | 150 lm/W |
Colour rendering index CRI | 80-89 |
Lamp shape | Tube, double-ended |
Filament lamp | No |
Type of glass/cover | Frosted |
Colour of light according to EN 12464-1 | Daylight white >5300 K |
Socket | G5 |
Colour | White |
Colour temperature | 6500-6500 K |
Housing colour | White |
Beam angle | 200-200 ° |
Colour consistency (McAdam ellipse) | SDCM6 |

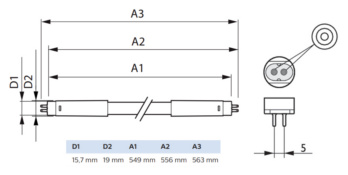

Diameter | 19 mm |
Length | 563 mm |
Degree of protection (IP) | IP20 |
Energy Efficiency Index (EEI) | 0.108 |
Lamp designation | Other |
Min. number of switching cycles | 50000 |
Weighted energy consumption in 1000 hours | 7 kWh |
Average nominal lifespan | 60000 h |
Remote operation possible | No |
With remote control | No |
Photobiological safety according to EN 62471 | RG0 |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
IFTTT support available | No |
E-number Finland | 4926046 |
