LIGHT ACTOR BASIC 4550lm 3K BL DIM

Art.-no. WS4158720

EAN 7392971154527

-

Art.-no. WS4158720

-
Quantity
PU

Show availability at another Center
Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

60 month warranty

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

No

Lamp type

LED not exchangeable

With light source

Yes

Suitable for number of light sources

1

Lamp holder

None

Housing material

Aluminium

Housing colour

Black

Material cover

Plastic matt/satinized

Type of grid

Matt

Voltage type

AC

Nominal voltage

220-240 V

Type of control gear

LED operating device current-controlled

With control gear

Yes

Dimmable

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

No

Dimming DMX

No

Dimming DSI

No

Dimming manufacturer's proprietary system

Yes

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

No

Dimming potentiometer (integrated)

No

Dimming phase cut-on (leading edge)

No

Dimming programmable

No

Dimming Touch and Dim

No

Dimming RF

No

Dimming Zigbee

No

Dimming with push-button

No

Light distributor

Reflector

Reflector

Matt

Light distribution

Symmetric

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct/indirect

Direct-/indirect proportion separately controllable

No

Energy efficiency class of the light source according to EU regulation 2019/2015

C

Rated lifetime L70/B50 at 25 °C

100000 h

Max. number of luminaires per miniature circuit breaker B16 (MCB)

25

Max. number of luminaires per miniature circuit breaker C16 (MCB)

43

Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)

89 %

Degree of protection (IP)

IP20

Protection class according to IEC 61140

I

Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24

No

Suitable for emergency lighting

No

With movement sensor

No

With presence detector

No

Luminaire efficacy

99-99 lm/W

Rated luminous flux according to IEC 62722-2- 1

4550-4550 lm

Max. system power

46 W

Colour of light

White

Colour temperature

3000-3000 K

Colour rendering index CRI

80-89

Power factor

0.9

Flickering value Pst LM

0.014

Stroboscope effect value SVM

0.005

Colour of light adjustable

No

Luminous flux adjustable

Continuously variable

Beam angle adjustable

No

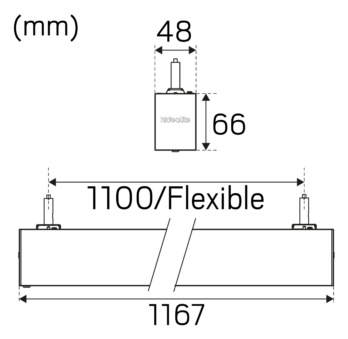

Width

48 mm

Height/depth

66 mm

Length

1167 mm

With suspension

Yes

Pendant length

100-2000 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

0.75 mm²

Connection type

Push-in clamp

E-number Finland

4158720
