Suitable for wall mounting

Yes

Suitable for suspended mounting

Yes

Suitable for ceiling mounting

Yes

Suitable for built-in mounting

Yes

Suitable for surface mounting

Yes

Suitable for light line configuration

Yes

Lamp type

LED exchangeable

With light source

Yes

Housing material

Aluminium

Housing colour

White

Voltage type

AC

Nominal voltage

220-240 V

Nominal current

450-450 mA

With control gear

Yes

Exchangeable control gear

Yes

Dimmable

Yes

Dimming DALI-2

Yes

Light distributor

Diffuser lens/optic/panel

Light distribution

Symmetric

Beam angle

41-80° - Wide beam

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct

Energy efficiency class of the light source according to EU regulation 2019/2015

C

Containing product according to 2019/2020/EU

Yes

Rated lifetime L70/B50 at 25 °C

100000 h

Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)

100 %

Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)

100 %

Degree of protection (IP), rear side

IP20

Degree of protection (IP), front side

IP20

Max. number of luminaires per miniature circuit breaker C10 (MCB)

52

Max. number of luminaires per miniature circuit breaker B16 (MCB)

50

Max. number of luminaires per miniature circuit breaker C16 (MCB)

85

Protection class according to IEC 61140

I

Rated ambient temperature according to IEC 62722-2-1

0-30 °C

Luminaire efficacy

133-140 lm/W

Max. system power

22 W

Rated luminous flux according to IEC 62722-2- 1

2930-3090 lm

Colour of light

White

Colour temperature

3000-4000 K

Flickering value Pst LM

0.03

Stroboscope effect value SVM

0.002

Constant light output (CLO)

Yes

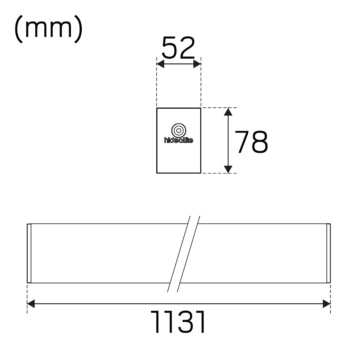

Width

52 mm

Height/depth

78 mm

Length

1131 mm

Number of poles

5

Connection type

Push-in clamp

Connectable conductor cross section

0.75-2.5 mm²

Colour of light adjustable

Positions

Luminous flux adjustable

Continuously variable

Beam angle adjustable

No

E-number Finland

4158783
