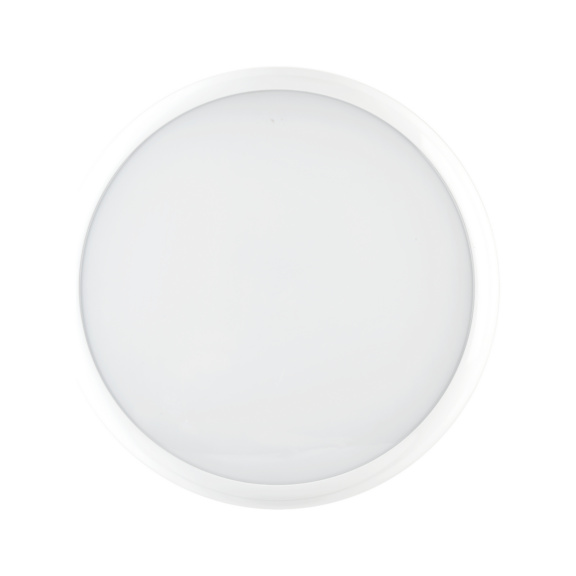

LIGHT CLY 15 S/EW 830/40 17W EM3
Art.-no. WS4549923
EAN 8018367727050
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | Yes |
Suitable for built-in mounting | No |
Suitable for surface mounting | No |
Suitable for light line configuration | No |
Suitable for workplace according to EN 12464-1 | No |
Lamp type | LED not exchangeable |
With light source | Yes |
Suitable for number of light sources | 1 |
Lamp holder | Other |
Housing material | Plastic |
Surface protection housing | Plastic-coated |
Housing colour | White |
Material cover | Plastic, opal |
Type of grid | None |
Voltage type | AC |
Nominal voltage | 220-240 V |
Nominal current | 500-500 mA |
Type of control gear | LED operating device current-controlled |
With control gear | Yes |
Exchangeable control gear | No |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI-2 | No |
Dimming DALI | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off | No |
Dimming phase cut-on | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
Light distributor | Other |
Light sharing | Symmetric |
Beam angle | Extreme wide beam >80° |
Light outlet | Direct |
Rated life time L70/B50 at 25 °C | 64000 h |
Max. number of luminaires per miniature circuit breaker B16 (MCB) | 166 |
Max. number of luminaires per miniature circuit breaker C16 (MCB) | 166 |
Degree of protection (NEMA) | Other |
Impact strength | IK10 |
Protection class | II |
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
Rated ambient temperature according to IEC 62722-2-1 | 0-35 °C |
Suitable for emergency lighting | Yes |
With movement sensor | No |
With light sensor | No |
Covering of the luminaire with thermally insulating material possible | No |
With air slots | No |
Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
Suitable for lamp power | 17-17 W |
Max. system power | 17 W |
Colour of light | White |
Colour temperature | 3000-4000 K |
Colour rendering index CRI | 80-89 |
Power factor | 0.9 |
Constant light output (CLO) | No |

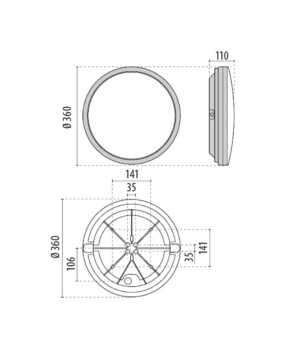

Width | 110 mm |
Outer diameter | 360 mm |
Type of wiring | Ending |
Number of poles | 5 |
Conductor cross section | 1.5 mm² |
Connection type | Other |
Photobiological safety according to EN 62471 | RG1 |
Colour of light adjustable | No |
Luminous flux adjustable | No |
Beam angle adjustable | No |
Operation by Bluetooth | No |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
IFTTT support available | No |
E-number Finland | 4549923 |
