Suitable for suspended mounting

Yes

Suitable for ceiling mounting

Yes

Suitable for built-in mounting

No

Suitable for surface mounting

Yes

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

No

Lamp type

LED not exchangeable

With light source

Yes

Housing material

Plastic

Surface protection housing

Untreated

Housing colour

Grey

Material cover

Plastic, opal

Type of grid

Other

Voltage type

AC

Nominal voltage

220-240 V

Nominal current

226-226 mA

Type of control gear

Electronic ballast

With control gear

Yes

Exchangeable control gear

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

Yes

Dimming DALI

Yes

Dimming DMX

No

Dimming DSI

No

Dimming potentiometer (integrated)

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming programmable

No

Dimming RF

No

Dimming Touch and Dim

Yes

Dimming Zigbee

No

Dimming with push-button

No

Light distributor

Diffuser lens/optic/panel

Beam angle

> 80° - Extreme wide beam

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Indirect

Rated lifetime L70/B50 at 25 °C

75000 h

Max. number of luminaires per miniature circuit breaker B16 (MCB)

36

Max. number of luminaires per miniature circuit breaker C16 (MCB)

60

Impact strength

IK10

Protection class according to IEC 61140

I

Rated ambient temperature according to IEC 62722-2-1

-40-45 °C

Suitable for emergency lighting

No

With movement sensor

No

With light sensor

No

Covering of the luminaire with thermally insulating material possible

No

With air slots

No

Filament test according to IEC 60695-2-11

650 °C - 30 s

Max. system power

52 W

Colour of light

White

Colour temperature

4000-4000 K

Colour rendering index CRI

80-89

Power factor

0.96

Constant light output (CLO)

Yes

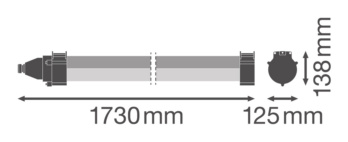

Width

125 mm

Height/depth

138 mm

Length

1730 mm

Type of wiring

Suitable for loop-through wiring

Number of poles

5

Conductor cross section

1.5 mm²

Connection type

Push-in clamp

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

25

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Operation by Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

E-number Finland

4325449

Brand

LEDVANCE
