Suitable for suspended mounting

No

Suitable for ceiling mounting

Yes

Suitable for built-in mounting

No

Suitable for surface mounting

Yes

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

Yes

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of light sources

1

Housing material

Steel

Surface protection housing

Powder coating

Housing colour

White

Type of grid

Other

Voltage type

AC/DC

Nominal voltage

220-240 V

Nominal current

108-118 mA

Type of control gear

LED operating device current-controlled

With control gear

Yes

Exchangeable control gear

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

Dimming DALI

Yes

Dimming DMX

No

Dimming DSI

No

Dimming potentiometer (integrated)

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off

No

Dimming phase cut-on

No

Dimming programmable

No

Dimming RF

No

Dimming Touch and Dim

Yes

Dimming Zigbee

No

Dimming with push-button

Yes

Light sharing

Symmetric

Beam angle

Wide beam 41-80°

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct

Rated life time L70/B50 at 25 °C

99800 h

Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)

79 %

Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)

70 %

Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)

55 %

Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)

0.8 %

Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)

1 %

Failure rate at median useful life of 75,000 h at 25 °C ambient (tq)

1.2 %

Degree of protection (NEMA)

1

Impact strength

IK05

Protection class

I

Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24

No

Suitable for emergency lighting

No

With movement sensor

No

With light sensor

No

Covering of the luminaire with thermally insulating material possible

No

With air slots

No

Filament test according to IEC 60695-2-11

650 °C - 30 s

Suitable for lamp power

15-23 W

Max. system power

26 W

Colour of light

White

Colour temperature

4000-4000 K

Flickering value Pst LM

0.7

Colour rendering index CRI

80-89

Power factor

0.9

Stroboscope effect value SVM

0.4

Constant light output (CLO)

No

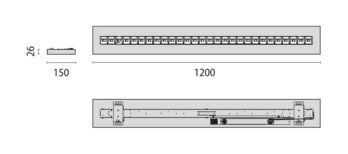

Width

150 mm

Height/depth

12 mm

Length

1200 mm

Type of wiring

Suitable for through wiring

Number of poles

5

Conductor cross section

1.5 mm²

Connection type

Push-in clamp

Photobiological safety according to EN 62471

RG0

Unified Glare Ratio (UGR)

19

Colour of light adjustable

No

Luminous flux adjustable

Positions

Beam angle adjustable

No

Operation by Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

E-number Finland

4296221
