Suitable for wall mounting

Yes

Suitable for suspended mounting

No

Suitable for ceiling mounting

Yes

Suitable for built-in mounting

No

Suitable for surface mounting

Yes

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

No

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of light sources

1

Lamp holder

Other

Housing material

Plastic

Surface protection housing

Untreated

Housing colour

White

Material cover

Other

Type of grid

None

Voltage type

AC

Nominal voltage

220-240 V

Type of control gear

Electronic transformer

With control gear

Yes

Exchangeable control gear

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

Dimming DALI

No

Dimming DMX

No

Dimming DSI

No

Dimming potentiometer (integrated)

No

Dimming GPRS

No

Dimming LineSwitch

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off

No

Dimming phase cut-on

No

Dimming programmable

No

Dimming RF

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Dimming depending on control gear

No

No dim function

Yes

Light distributor

Diffuser lens/optic/panel

Light sharing

Symmetric

Colour consistency (McAdam ellipse)

SDCM5

Light outlet

Direct/indirect

Max. number of luminaires per miniature circuit breaker B16 (MCB)

21

Max. number of luminaires per miniature circuit breaker C16 (MCB)

36

Degree of protection (IP)

IP65

Impact strength

IK10

Protection class

II

Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24

No

Rated ambient temperature according to IEC 62722-2-1

25-25 °C

Suitable for emergency lighting

No

Emergency power supply integrated

No

With movement sensor

No

With light sensor

No

Covering of the luminaire with thermally insulating material possible

Yes

Filament test according to IEC 60695-2-11

650 °C - 30 s

Max. system power

19 W

Luminaire efficacy

105 lm/W

Rated luminous flux according to IEC 62722-2-1

2000 lm

Colour of light

White

Colour temperature

4000-4000 K

Flickering value Pst LM

0.3

Colour rendering index CRI

80-89

Power factor

0.9

Stroboscope effect value SVM

0.3

Constant light output (CLO)

No

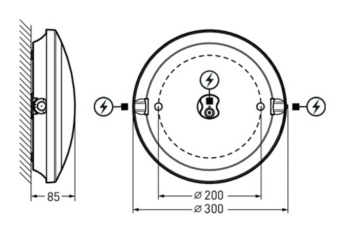

Height/depth

85 mm

Outer diameter

300 mm

Number of poles

3

Conductor cross section

1.5 mm²

Connection type

Push-in clamp

Total harmonic distortion

14

Photobiological safety according to EN 62471

RG0

Colour of light adjustable

Positions

Luminous flux adjustable

Positions

Beam angle adjustable

No

Operation by Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

E-number Finland

4517208
