Suitable for suspended mounting

Yes

Suitable for ceiling mounting

Yes

Suitable for built-in mounting

No

Suitable for surface mounting

Yes

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

Yes

Lamp type

LED not exchangeable

With light source

Yes

Lamp holder

Other

Housing material

Steel

Surface protection housing

Powder coating

Housing colour

White

Material cover

Plastic, structured

Type of grid

None

Voltage type

AC

Nominal voltage

220-240 V

Nominal current

135-160 mA

Type of control gear

LED operating device current-controlled

With control gear

Yes

Exchangeable control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

Dimming DALI

No

Dimming DMX

No

Dimming DSI

No

Dimming potentiometer (integrated)

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off

No

Dimming phase cut-on

No

Dimming programmable

No

Dimming RF

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Light distributor

Diffuser lens/optic/panel

Light sharing

Symmetric

Beam angle

Extreme wide beam >80°

Colour consistency (McAdam ellipse)

SDCM5

Light outlet

Direct

Rated life time L70/B50 at 25 °C

75000 h

Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)

80 %

Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)

70 %

Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)

7.5 %

Failure rate at median useful life of 75,000 h at 25 °C ambient (tq)

10 %

Max. number of luminaires per miniature circuit breaker B16 (MCB)

60

Max. number of luminaires per miniature circuit breaker C16 (MCB)

70

Impact strength

IK03

Protection class

II

Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24

No

Rated ambient temperature according to IEC 62722-2-1

25-25 °C

Suitable for emergency lighting

No

With movement sensor

No

With light sensor

No

Covering of the luminaire with thermally insulating material possible

No

With air slots

No

Filament test according to IEC 60695-2-11

650 °C - 30 s

Max. system power

33 W

Colour of light

White

Colour temperature

4000-4000 K

Flickering value Pst LM

1

Colour rendering index CRI

80-89

Power factor

0.9

Stroboscope effect value SVM

1.6

Constant light output (CLO)

No

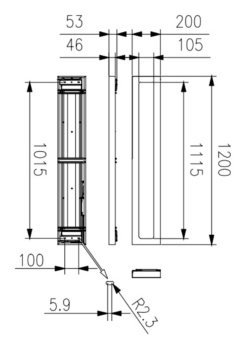

Width

200 mm

Height/depth

53 mm

Length

1200 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

0.75 mm²

Connection type

Push-in clamp

Photobiological safety according to EN 62471

RG0

Unified Glare Ratio (UGR)

19

Colour of light adjustable

No

Luminous flux adjustable

Positions

Beam angle adjustable

No

Operation by Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

E-number Finland

4251929
