LIGHT NORMA+ 150CL 68W 840 IP65 5TH
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | Yes |
Suitable for built-in mounting | No |
Suitable for surface mounting | No |
Suitable for light line configuration | Yes |
Suitable for workplace according to EN 12464-1 | No |
Lamp type | LED not exchangeable |
With light source | Yes |
Suitable for number of light sources | 1 |
Lamp holder | Other |
Housing material | Plastic |
Surface protection housing | Untreated |
Housing colour | Grey |
Material cover | Plastic, opal |
Type of grid | None |
Voltage type | AC |
Nominal voltage | 220-240 V |
Type of control gear | LED operating device current-controlled |
With control gear | Yes |
Exchangeable control gear | Yes |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI-2 | No |
Dimming DALI | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off | No |
Dimming phase cut-on | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
Light sharing | Symmetric |
Beam angle | Extreme wide beam >80° |
Colour consistency (McAdam ellipse) | SDCM5 |
Light outlet | Direct |
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 91.4 % |
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 87.9 % |
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq) | 82.3 % |
Max. number of luminaires per miniature circuit breaker B16 (MCB) | 19 |
Max. number of luminaires per miniature circuit breaker C16 (MCB) | 28 |
Impact strength | IK09 |
Protection class | I |
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
Suitable for emergency lighting | No |
With movement sensor | No |
Covering of the luminaire with thermally insulating material possible | No |
With air slots | No |
Filament test according to IEC 60695-2-11 | None |
Suitable for lamp power | 68-68 W |
Max. system power | 59 W |
Colour of light | White |
Colour temperature | 4000-4000 K |
Colour rendering index CRI | 80-89 |
Constant light output (CLO) | No |

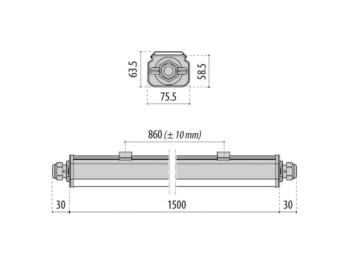

Width | 1560 mm |
Height/depth | 75.5 mm |
Length | 63.5 mm |
Photobiological safety according to EN 62471 | RG1 |
Unified Glare Ratio (UGR) | 22.5 |
Colour of light adjustable | No |
Luminous flux adjustable | No |
Beam angle adjustable | No |
Operation by Bluetooth | No |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
IFTTT support available | No |
E-number Finland | 4317445 |
