Downlight IP65 Obico
LIGHT OBICO 80 820lm 930/940 IP65 WT
SYLVANIA
With registration you can access the Würth Elektro online shop selection.
Obico is an IP65 rated directional downlight. The colour temperature of the luminaire can be changed with a dip switch from 3000 kelvin to 4000 kelvin and vice versa. This enables the lighting to be changed flexibly according to the installation location. The luminaires low profile allows it to be installed in narrow suspended ceiling structures. The luminaire is perfectly suited for housing production, e.g. living rooms, kitchens, corridors, toilets and bathrooms.
Datasheets(X)
Rated luminous flux according to IEC 62722-2-1 | 820 lm |
Colour temperature | 3000-4000 K |
Type of wiring | Through wiring included |
Housing colour | Other |
Suitable for traverse mounting | No |
Suitable for pedestal/floor mounting | No |
Suitable for light-track mounting | No |
Suitable for clamp-mounting | No |
Suitable for low voltage cable system | No |
With movement sensor | No |
With light sensor | No |
Lamp type | LED not exchangeable |
With light source | Yes |
Suitable for number of light sources | 1 |
Surface protection | Powder coating |
Suitable for ceiling mounting | Yes |
Surface brushed | No |
Voltage type | AC |
Nominal voltage | 220-240 V |
Type of control gear | LED operating device current-controlled |
With control gear | Yes |
Exchangeable control gear | Yes |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI-2 | No |
Dimming DALI | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | Yes |
Dimming phase cut-off | Yes |
Dimming phase cut-on | Yes |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
No dim function | No |
Reflector | None |
Light distributor | Refractor lens |
Light sharing | Symmetric |
Beam angle | Medium beam 21-40° |
Light outlet | Direct |
Total harmonic distortion | 25 |
Rated life time L70/B50 at 25 °C | 100000 h |
Constant light output (CLO) | No |
Degree of protection (IP) | IP65 |
Impact strength | IK03 |
Protection class | II |
Rated ambient temperature according to IEC 62722-2-1 | -20-40 °C |
Max. system power | 8.2 W |
Colour of light | White |
Suitable for wall mounting | No |
Colour rendering index CRI | 90-100 |
Luminous flux | 820-820 lm |
Suitable for built-in mounting | Yes |
Power factor | 0.9 |
Colour of light adjustable | Continuously variable |
Beam angle adjustable | No |

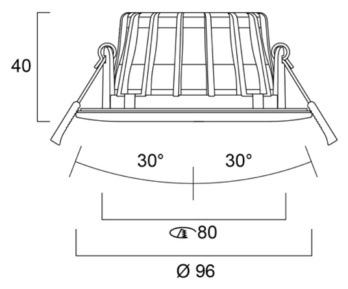

Height/depth | 40 mm |
Outer diameter | 96 mm |
Suitable for surface mounting | No |
Suitable for suspended mounting | No |
Number of poles | 3 |
Conductor cross section | 1.5 mm² |
Connectable conductor cross section | 0.75-1.5 mm² |
Connection type | Push-in clamp |
Max. number of luminaires per miniature circuit breaker B16 (MCB) | 145 |
Max. number of luminaires per miniature circuit breaker C16 (MCB) | 145 |
Emergency power supply integrated | No |
Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
Luminaire efficacy | 100 lm/W |
Photobiological safety according to EN 62471 | RG1 |
Covering of the luminaire with thermally insulating material possible | Yes |
IFTTT support available | No |
Colour consistency (McAdam ellipse) | SDCM4 |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
E-number Finland | 4278508 |
Brand | SYLVANIA |
