Modular luminaire IP40 Opticlip Terra 600

Suitable for suspended mounting

No

Suitable for ceiling mounting

Yes

Suitable for built-in mounting

Yes

Suitable for surface mounting

No

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

Yes

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of light sources

2

Housing material

Other

Housing colour

White

Material cover

Without cover

Type of grid

High-gloss

Voltage type

AC

Nominal voltage

220-240 V

Nominal current

152.8-166.7 mA

Type of control gear

LED operating device current-controlled

With control gear

Yes

Exchangeable control gear

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

Dimming DALI

No

Dimming DMX

No

Dimming DSI

No

Dimming potentiometer (integrated)

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming programmable

No

Dimming RF

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Light distributor

Diffuser lens/optic/panel

Light distribution

Symmetric

Beam angle

41-80° - Wide beam

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct

Rated lifetime L70/B50 at 25 °C

100000 h

Max. number of luminaires per miniature circuit breaker B16 (MCB)

33

Max. number of luminaires per miniature circuit breaker C16 (MCB)

56

Impact strength

IK02

Protection class according to IEC 61140

II

Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24

No

Rated ambient temperature according to IEC 62722-2-1

5-35 °C

Suitable for emergency lighting

No

With movement sensor

No

With light sensor

No

Covering of the luminaire with thermally insulating material possible

No

With air slots

No

Filament test according to IEC 60695-2-11

650 °C - 30 s

Max. system power

33 W

Colour of light

White

Colour temperature

3000-3000 K

Colour rendering index CRI

80-89

Power factor

0.9

Constant light output (CLO)

No

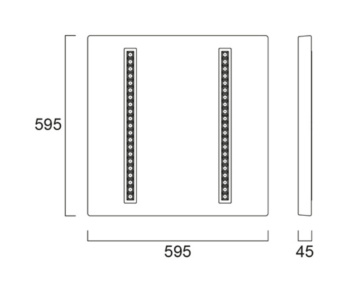

Width

595 mm

Height/depth

45 mm

Length

595 mm

Built-in height/depth

200 mm

Type of wiring

Loop-through wiring included

Number of poles

2

Conductor cross section

1.5 mm²

Connection type

Push-in clamp

Photobiological safety according to EN 62471

RG0

Unified Glare Ratio (UGR)

16

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

Operation by Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

E-number Finland

4170674

Brand

SYLVANIA
