LIGHT PIXO SMALL 14W/930 1650lm BK
SYLVANIA
Art.-no. WS4279591
EAN 5410288045412
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Suitable for surface mounting | No |
Suitable for built-in mounting | No |
Suitable for wall mounting | No |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | No |
Suitable for traverse mounting | No |
Suitable for pedestal/floor mounting | No |
Suitable for light-track mounting | Yes |
Suitable for clamp-mounting | No |
Suitable for low voltage cable system | No |
Adjustability | Rotatable |
With movement sensor | No |
With light sensor | No |
With light source | Yes |
Suitable for number of light sources | 1 |
Housing material | Aluminium |
Surface protection | Powder coating |
Housing colour | Black |
Material cover | Without cover |
Surface brushed | No |
Voltage type | AC |
Nominal voltage | 220-240 V |
Type of control gear | LED operating device current-controlled |
With control gear | Yes |
Exchangeable control gear | Yes |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI-2 | No |
Dimming DALI | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off | No |
Dimming phase cut-on | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
No dim function | Yes |
Reflector | High-gloss |
Light distributor | Refractor lens |
Light sharing | Symmetric |
Beam angle | Medium beam 21-40° |
Light outlet | Direct |
Total harmonic distortion | 20 |
Rated life time L70/B50 at 25 °C | 120000 h |
Constant light output (CLO) | No |
Degree of protection (IP) | IP20 |
Impact strength | IK03 |
Protection class | II |
Rated ambient temperature according to IEC 62722-2-1 | 25-25 °C |
Max. system power | 14 W |
Colour of light | White |
Colour temperature | 3000-3000 K |
Colour rendering index CRI | 90-100 |
Luminous flux | 1650-1650 lm |
Rated luminous flux according to IEC 62722-2-1 | 1650 lm |
Power factor | 0.9 |
Colour of light adjustable | No |
Luminous flux adjustable | No |
Beam angle adjustable | No |

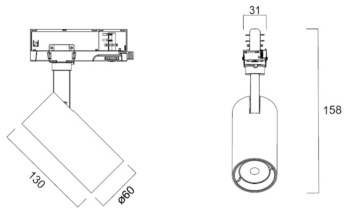

Width | 130 mm |
Length | 130 mm |
Outer diameter | 60 mm |
Connection type | Other |
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
Max. number of luminaires per miniature circuit breaker B16 (MCB) | 48 |
Max. number of luminaires per miniature circuit breaker C16 (MCB) | 77 |
Emergency power supply integrated | No |
Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
Luminaire efficacy | 118 lm/W |
Photobiological safety according to EN 62471 | RG1 |
IFTTT support available | No |
Colour consistency (McAdam ellipse) | SDCM4 |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
E-number Finland | 4279591 |
Brand | SYLVANIA |
