Max. system power

142 W

Suitable for auxiliary lamp

No

Lamp holder

None

Housing material

Aluminium

Housing colour

Grey

Nominal voltage

220-240 V

Nominal current

610-665.4 mA

Type of control gear

LED operating device current-controlled

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

Yes

Dimming DMX

No

Dimming DSI

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming potentiometer (integrated)

No

Dimming LineSwitch

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming programmable

No

Dimming RF

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Light distributor

None

Reflector

Matt

Material reflector

Plastic

With light source

Yes

Colour consistency (McAdam ellipse)

SDCM3

Rated lifetime L70/B50 at 25 °C

120000 h

Degree of protection (IP)

IP65

Impact strength

IK08

Protection class according to IEC 61140

I

Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24

Yes

Rated ambient temperature according to IEC 62722-2-1

-30-50 °C

Suitable for emergency lighting

No

Filament test according to IEC 60695-2-11

850 °C - 30 s

Lamp type

LED exchangeable

Colour of light

White

Suitable for number of light sources

2

Colour temperature

4000-4000 K

Colour rendering index CRI

80-89

Power factor

0.97

Constant light output (CLO)

No

Colour of light adjustable

No

Beam angle adjustable

No

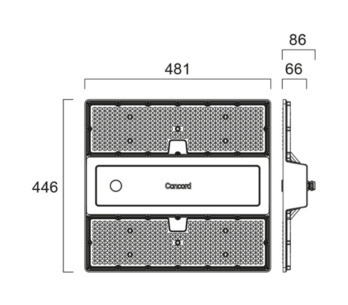

Width

446 mm

Height/depth

86 mm

Length

481 mm

Number of poles

5

Connection type

Other

Max. number of luminaires per miniature circuit breaker B16 (MCB)

16

Max. number of luminaires per miniature circuit breaker C16 (MCB)

16

E-number Finland

4327131
