LIGHT RS PRO P3 S IP54 2188lm 4K
STEINEL
Art.-no. WS4114966
EAN 4007841056117
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
![]() | |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | Yes |
Suitable for built-in mounting | No |
Suitable for surface mounting | Yes |
Suitable for light line configuration | No |
Suitable for workplace according to EN 12464-1 | No |
Lamp type | LED not exchangeable |
With light source | Yes |
Lamp holder | Other |
Housing material | Plastic |
Material cover | Plastic, opal |
Type of grid | None |
Nominal voltage | 220-240 V |
Type of control gear | LED operating device current-controlled |
With control gear | Yes |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off (trailing edge) | No |
Dimming phase cut-on (leading edge) | No |
Dimming RF | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
Light distribution | Symmetric |
Beam angle | Extreme wide beam >80° |
Light outlet | Direct |
Impact strength | IK03 |
Protection class according to IEC 61140 | II |
Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24 | No |
Rated ambient temperature according to IEC 62722-2-1 | -10-40 °C |
Suitable for emergency lighting | No |
With movement sensor | Yes |
Covering of the luminaire with thermally insulating material possible | No |
With air slots | No |
Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
Suitable for lamp power | 18.4-18.4 W |
Max. system power | 18.4 W |
Colour of light | White |
Colour temperature | 4000-4000 K |
Power factor | 0.9 |

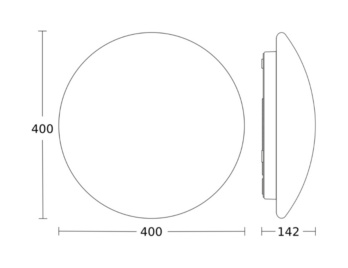

Height/depth | 142 mm |
Length | 142 mm |
Outer diameter | 400 mm |
Number of poles | 2 |
Conductor cross section | 2.5 mm² |
Connection type | Other |
Photobiological safety according to EN 62471 | RG1 |
Operation by Bluetooth | No |
E-number Finland | 4114966 |
