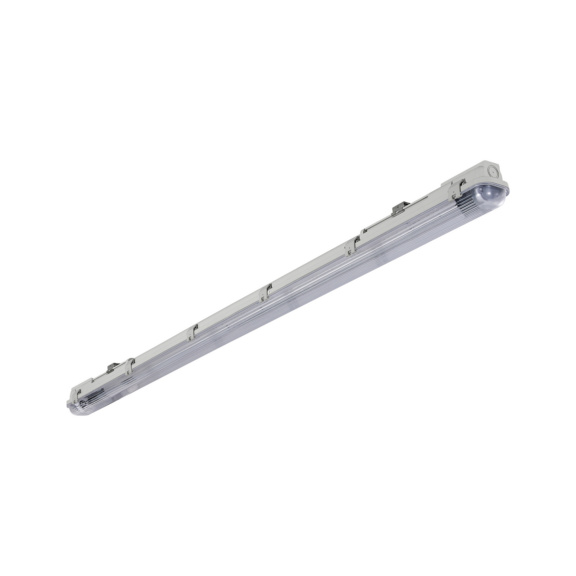

Damp-proof industrial LED tube housing Start Waterproof LED T8
LIGHT START WATERP. LED 1-PIPE 1200MM
Art.-no. WS4357155
EAN 5410288471938
With registration you can access the Würth Elektro online shop selection.
Start Waterproof T8 is an IP65 rated polycarbonate LED tube housing, available in 1200 mm and 1500 mm lengths and in single and double tubes models. It is compatible with all Sylvania LED tubes and offers a long-lasting and maintenance-free solution.
Perfectly suited for industrial premises, warehouses, garages and parking garages.
Datasheets(X)
 | |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | Yes |
Suitable for built-in mounting | No |
Suitable for surface mounting | Yes |
Suitable for light line configuration | No |
With light source | No |
Lamp holder | 2G13 |
Housing material | Plastic |
Surface protection housing | Untreated |
Housing colour | Grey |
Material cover | Plastic, transparent |
Type of grid | None |
Voltage type | AC |
Nominal voltage | 220-240 V |
Nominal current | 0.4-0.5 mA |
Type of control gear | Not required |
With control gear | No |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI-2 | No |
Dimming DALI | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off (trailing edge) | No |
Dimming phase cut-on (leading edge) | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
Light distributor | None |
Light distribution | Symmetric |
Rated lifetime L70/B50 at 25 °C | 25000 h |
Max. number of luminaires per miniature circuit breaker B16 (MCB) | 1 |
Max. number of luminaires per miniature circuit breaker C16 (MCB) | 1 |
Impact strength | IK08 |
Protection class according to IEC 61140 | II |
Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24 | No |
Rated ambient temperature according to IEC 62722-2-1 | -20-40 °C |
Suitable for emergency lighting | No |
With movement sensor | No |
With light sensor | No |
Covering of the luminaire with thermally insulating material possible | No |
With air slots | No |
Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
Max. system power | 0.1 W |
Constant light output (CLO) | No |
Width | 65 mm |
Height/depth | 60 mm |
Length | 1280 mm |
Type of wiring | Ending |
Number of poles | 3 |
Conductor cross section | 1.5 mm² |
Connection type | Cable |
Luminous flux adjustable | No |
Operation by Bluetooth | No |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
IFTTT support available | No |
E-number Finland | 4357155 |
