LEDVANCE

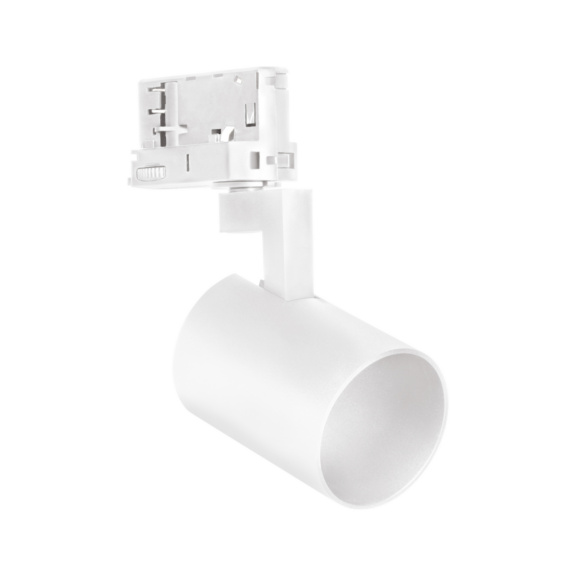

LIGHT TR SP HOUSING GU10 WT
LEDVANCE

Art.-no. WS4161203

EAN 4099854590023

-

Art.-no. WS4161203

-
Quantity
PU

Show availability at another Center
Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

24 month warranty

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Suitable for surface mounting

Yes

Suitable for built-in mounting

No

Suitable for wall mounting

Yes

Suitable for suspended mounting

No

Suitable for ceiling mounting

No

Suitable for traverse mounting

No

Suitable for pedestal/floor mounting

No

Suitable for light-track mounting

No

Suitable for clamp-mounting

No

With movement sensor

No

With light sensor

No

With light source

No

Lamp holder

GU10

Housing material

Aluminium

Housing colour

White

Surface brushed

No

Voltage type

AC

Nominal voltage

220-240 V

With control gear

No

Exchangeable control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

Dimming DALI

No

Dimming DMX

No

Dimming DSI

No

Dimming potentiometer (integrated)

No

Dimming LineSwitch

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming programmable

No

Dimming RF

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Light distributor

None

Light distribution

Symmetric

Light outlet

Direct

Constant light output (CLO)

No

Degree of protection (NEMA)

1

Impact strength

IK02

Protection class according to IEC 61140

II

Rated ambient temperature according to IEC 62722-2-1

-20-40 °C

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

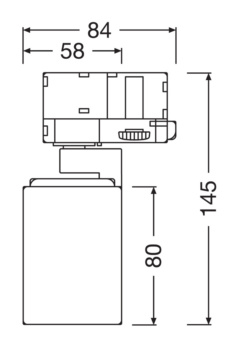

Width

58 mm

Height/depth

145 mm

Length

58 mm

Outer diameter

58 mm

Number of poles

3

Connection type

Busbar adaptor

Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24

No

Filament test according to IEC 60695-2-11

650 °C - 30 s

Suitable for workplace according to EN 12464-1

No

Covering of the luminaire with thermally insulating material possible

No

IFTTT support available

No

Compatible with Apple HomeKit

No

Compatible with Amazon Alexa

No

E-number Finland

4161203
