LIGHT ZEPHYR S 27W 4050lm 830 IP66
Art.-no. WS4579667
EAN 5410288505879
With registration you can access the Würth Elektro online shop selection.
5 years warranty
Datasheets(X)
 | |
Lamp type | LED exchangeable |
With light source | Yes |
Lamp holder | None |
Housing material | Other |
Surface protection | Powder coating |
Housing colour | Other |
Material cover | Glass transparent |
Nominal voltage | 220-240 V |
Nominal current | 125-136.4 mA |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off (trailing edge) | No |
Dimming phase cut-on (leading edge) | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Zigbee | No |
Light distributor | None |
Colour consistency (McAdam ellipse) | SDCM5 |
Rated lifetime L70/B50 at 25 °C | 100000 h |
Degree of protection (IP) | IP66 |
Impact strength | IK08 |
Protection class according to IEC 61140 | I |
Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24 | No |
Rated ambient temperature according to IEC 62722-2-1 | -25-50 °C |
Constant light output (CLO) | No |
With connection cable | No |
Max. system power | 27 W |
Luminaire efficacy | 150 lm/W |
Colour of light | White |
Colour temperature | 3000-3000 K |
Colour rendering index CRI | 80-89 |
Power factor | 0.9 |

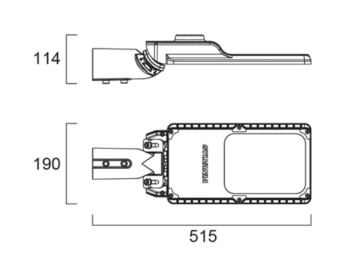

Width | 190 mm |
Height/depth | 114 mm |
Length | 515 mm |
Number of poles | 3 |
Connection type | Other |
E-number Finland | 4579667 |
