Linear luminaire Compact Batten Switch, IP20
LN COMP SWITCH 1200 14W/4000K
LEDVANCE
With registration you can access the Würth Elektro online shop selection.
Linear luminaire with switch for fixed installation. Applications include lobbies, stairwells, offices, and basements. Replaces traditional linear fluorescent lamps. Right-angle connection possible with included cable. Up to ten of these luminaires can be seamlessly connected in a chain.
Datasheets(X)
Rated luminous flux according to IEC 62722-2-1 | 1500 lm |
Colour temperature | 4000-4000 K |
Type of wiring | Through wiring included |

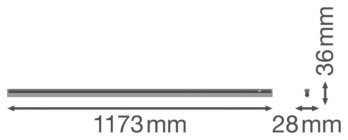

Length | 1173 mm |
Dimming phase cut-on | No |
Dimming DALI | No |
Dimming with push-button | No |
With movement sensor | No |
Max. system power | 14 W |
Light sharing | Symmetric |
Housing colour | White |
Housing material | Plastic |
Material cover | Plastic, opal |
Type of grid | Matt |
Voltage type | AC |
Nominal voltage | 220-240 V |
Type of control gear | Electronic ballast |
With control gear | Yes |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Suitable for workplace according to EN 12464-1 | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming GPRS | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off | No |
Suitable for light line configuration | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Lamp type | LED not exchangeable |
Dimming depending on control gear | No |
No dim function | Yes |
Light distributor | Diffuser lens/optic/panel |
Beam angle | Extreme wide beam >80° |
Light outlet | Direct |
Energy efficiency class of the built-in lamp | A++, A+, A (LED) |
Rated life time L70/B50 at 25 °C | 50000 h |
Rated life time L80/B10 at 25 °C | 40000 h |
Rated life time L90/B10 at 25 °C | 30000 h |
Degree of protection (IP) | IP20 |
Impact strength | IK03 |
Protection class | II |
Suitable for emergency lighting | No |
With light source | Yes |
With light sensor | No |
Covering of the luminaire with thermally insulating material possible | No |
With air slots | No |
Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
Suitable for lamp power | 14-14 W |
Suitable for ceiling mounting | Yes |
Luminaire efficacy | 100 lm/W |
Suitable for wall mounting | Yes |
Colour of light | White |
Suitable for suspended mounting | No |
Colour rendering index CRI | 80-89 |
Power factor | 0.5 |
Width | 28 mm |
Height/depth | 36 mm |
Suitable for built-in mounting | No |
Suitable for surface mounting | Yes |
Number of poles | 2 |
Connection type | Screwed terminal |
E-number Finland | 4125334 |
Brand | LEDVANCE |
