Linear luminaire IP44 Linear Surface Gen 2
Protected against water splashes
LN SF IP44 1200 32W/840 4384lm
LEDVANCE
With registration you can access the Würth Elektro online shop selection.
The luminaires in the LEDVANCE LINEAR SURFACE product series are excellently suited as general lighting for various spaces. In addition to the excellent light efficiency of 137 lm/W, they are easy to install thanks to the through-wiring cables .
The luminaires in the Linear Surface product line are 5x 1.5mm through-wired. The connection cables can be brought into the luminaire from either end or from the middle of the luminaire. The dome of the Linear Surface luminaires is made of durable polycarbonate, and with it the lamp produces an even light. The body of the luminaires is made of painted steel, which makes its structure sturdy.
Linear Surface luminaires are suitable for indoor use at temperatures from -10 °C to +40 °C, they are IP44 and IK08 rated and have been granted an ENEC certificate. The average lifetime of the luminaires is 70,000 hours (L70/B50 @ +25 °C) and the product line is granted a five-year product warranty.
Datasheets(X)
Suitable for wall mounting | Yes |
Suitable for suspended mounting | Yes |
Suitable for ceiling mounting | Yes |
Suitable for built-in mounting | No |
Suitable for surface mounting | Yes |
Suitable for workplace according to EN 12464-1 | No |
With light source | Yes |
Housing colour | White |
Type of grid | Matt |
Nominal current | 150-150 mA |
With control gear | Yes |
Exchangeable control gear | Yes |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI-2 | No |
Dimming DALI | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming GPRS | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off | No |
Dimming phase cut-on | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
Dimming depending on control gear | No |
No dim function | Yes |
Beam angle | Extreme wide beam >80° |
Colour consistency (McAdam ellipse) | SDCM3 |
Rated life time L70/B50 at 25 °C | 70000 h |
Rated life time L80/B10 at 25 °C | 70000 h |
Rated life time L90/B10 at 25 °C | 41000 h |
Degree of protection (IP) | IP44 |
Impact strength | IK08 |
Protection class | I |
Rated ambient temperature according to IEC 62722-2-1 | -10-40 °C |
Emergency power supply integrated | No |
With movement sensor | No |
With light sensor | No |
Max. system power | 32 W |
Luminaire efficacy | 137 lm/W |
Rated luminous flux according to IEC 62722-2-1 | 4384 lm |
Colour of light | White |
Colour temperature | 4000-4000 K |

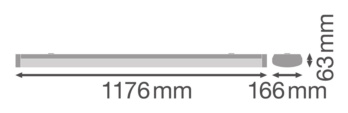

Width | 166 mm |
Length | 1176 mm |
Number of poles | 3 |
Connection type | Push-in clamp |
Colour of light adjustable | No |
Luminous flux adjustable | No |
Operation by Bluetooth | No |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
IFTTT support available | No |
E-number Finland | 4324765 |
Brand | LEDVANCE |
