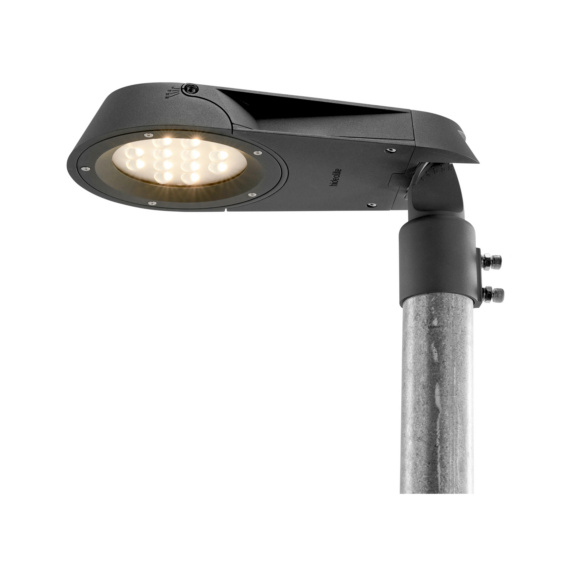

Post luminaire IP65 Sharp Post Asym
LUMINAI. SHARP POST ASYM 3000lm 3/4K AN
HIDE-A-LITE
Art.-no. WS4528906
EAN 7392971150635
With registration you can access the Würth Elektro online shop selection.
Sharp Post Asym post luminaires offer a stylish and efficient lighting solution with their sharp design. The asymmetrical light distribution allows the light to be focused on walkways, making the luminaires an excellent choice for cycle paths, bicycle parking lots and large parking areas. The recommended distance between the posts is 4-6 meters.
The luminaires have replaceable LEDs and driver, and the luminous flux can be conveniently adjusted. Selectable colour temperature via DIP-switch. The luminaire is designed to withstand the challenges of the northern climate thanks to its impact-resistant (IK10) structure and durable powder coating. The tiltable luminaire head allows you to direct the light precisely. Easy to install on 48mm or 60mm diameter poles, and comes with a 5m pre-connected rubber cable for quick cabling.
Datasheets(X)
 | |
Mounting method | Post top |
Lamp type | LED exchangeable |
With light source | Yes |
Suitable for number of light sources | 1 |
Lamp holder | None |
Housing material | Aluminium |
Surface protection | Powder coating |
Housing colour | Anthracite |
Material cover | Plastic, transparent |
Voltage type | AC |
Nominal voltage | 220-240 V |
Nominal current | 250-750 mA |
Type of control gear | LED operating device current-controlled |
With control gear | Yes |
Exchangeable control gear | Yes |
No dim function | Yes |
Light distributor | Focal lens |
Colour consistency (McAdam ellipse) | SDCM3 |
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 84 % |
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 70 % |
Rated life time L70/B50 at 25 °C | 100000 h |
Degree of protection (IP) | IP65 |
Adjustable optics | No |
Suitable for spigot size | 48-60 mm |
Impact strength | IK10 |
Protection class | I |
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
Rated ambient temperature according to IEC 62722-2-1 | -20-50 °C |
With connection cable | Yes |
Cable length | 4.75 m |
Max. system power | 31 W |
Rated luminous flux according to IEC 62722-2-1 | 3000 lm |
Luminaire efficacy | 97 lm/W |
Colour of light | White |
Colour temperature | 3000-4000 K |
Colour rendering index CRI | 80-89 |
Power factor | 0.94 |

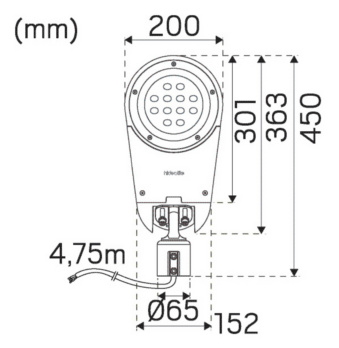

Width | 200 mm |
Height/depth | 61 mm |
Length | 450 mm |
Type of wiring | Ending |
Number of poles | 3 |
Conductor cross section | 1 mm² |
Connection type | Push-in clamp |
E-number Finland | 4528906 |
Brand | HIDE-A-LITE |
