Suitable for wall mounting

No

Suitable for suspended mounting

Yes

Suitable for ceiling mounting

Yes

Suitable for built-in mounting

No

Suitable for surface mounting

Yes

Suitable for light line configuration

No

Suitable for clamp-mounting

No

With mounting material

Yes

Suitable for workplace according to EN 12464-1

No

Lamp type

LED not exchangeable

With light source

Yes

Housing material

Aluminium

Housing colour

White

Type of grid

Other

Voltage type

AC/DC

Nominal voltage

220-240 V

Nominal current

175-175 mA

Type of control gear

Electronic ballast

With control gear

Yes

Exchangeable control gear

Yes

Dimmable

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI

Yes

Dimming DALI-2

Yes

Dimming DMX

No

Dimming DSI

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming programmable

No

Dimming potentiometer (integrated)

No

Dimming RF

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

Yes

Light distributor

Diffuser lens/optic/panel

Light distribution

Symmetric

Beam angle

Open beam/diffuse

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct

Energy efficiency class of the light source according to EU regulation 2019/2015

D

Rated lifetime L70/B50 at 25 °C

100000 h

Degree of protection (IP), rear side

IP20

Degree of protection (IP), front side

IP20

Max. number of luminaires per miniature circuit breaker C10 (MCB)

29

Max. number of luminaires per miniature circuit breaker B16 (MCB)

47

Max. number of luminaires per miniature circuit breaker C16 (MCB)

47

Impact strength

IK02

Protection class according to IEC 61140

II

Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24

No

Emergency power supply system

None

Rated ambient temperature according to IEC 62722-2-1

-10-40 °C

Suitable for emergency lighting

Yes

Emergency function monitoring system

None

With switch

No

With presence detector

No

With movement sensor

No

With light sensor

No

Covering of the luminaire with thermally insulating material possible

No

With air slots

No

Filament test according to IEC 60695-2-11

650 °C - 30 s

Luminaire efficacy

130-130 lm/W

Max. system power

38 W

Rated luminous flux according to IEC 62722-2- 1

5000-5000 lm

Colour of light

White

Colour temperature

3000-4000 K

Colour rendering index CRI

90-100

Power factor

0.9

Constant light output (CLO)

No

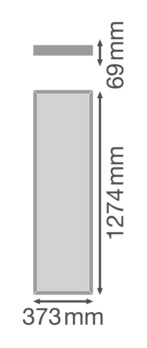

Width

373 mm

Height/depth

69 mm

Length

1274 mm

Type of wiring

Suitable for loop-through wiring

Number of poles

5

Conductor cross section

0.75 mm²

Connection type

Push-in clamp

Photobiological safety according to EN 62471

RG0

Connectable conductor cross section

0.75-0.75 mm²

Colour of light adjustable

Positions

Luminous flux adjustable

No

Beam angle adjustable

No

Operation by Bluetooth

No

Compatible with Casambi

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

Ball-proof according to DIN 18032-3

No

Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)

No

E-number Finland

4161319

Brand

LEDVANCE
