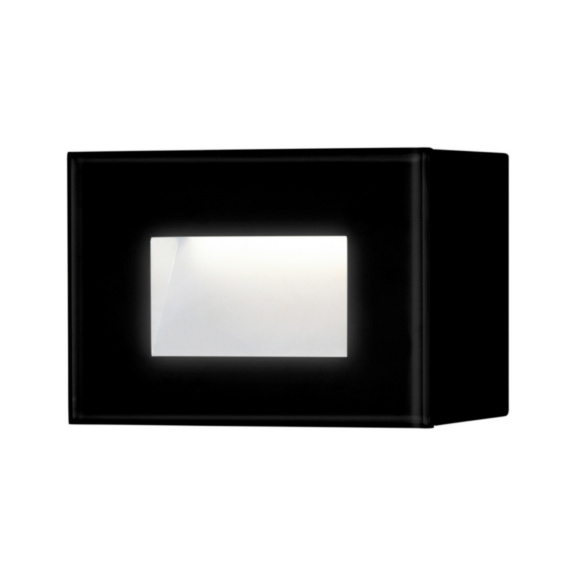

Wall luminaire IP54 CHIERI
LUMINAIRE CHIERI 7862-750 IP54 4W BK
KONSTSMIDE
Art.-no. WS4533436
EAN 7318307862751
With registration you can access the Würth Elektro online shop selection.
Chieri is a versatile range of wall luminaires that offers options with both adjustable and fixed light distribution. The range also includes effect models in which the light distribution is achieved using lenses. The series also includes wall luminaires for surface or flush-mounting. The delivery includes a surface mounting box and a flush mounting box.
Datasheets(X)
 | |
Suitable for built-in mounting | Yes |
Suitable for surface mounting | Yes |
Lamp type | LED not exchangeable |
With light source | Yes |
Suitable for number of light sources | 14 |
Housing material | Aluminium |
Surface protection housing | Powder coating |
Housing colour | Black |
Material cover | Glass transparent |
Voltage type | AC |
Nominal voltage | 230-240 V |
Light distribution | Asymmetric |
Light outlet | Direct/indirect |
Degree of protection (IP) | IP54 |
Protection class according to IEC 61140 | II |
With movement sensor | No |
Max. system power | 4 W |
Rated luminous flux according to IEC 62722-2-1 | 300 lm |
Colour of light | White |
Colour temperature | 3000-3000 K |
Colour rendering index CRI | 80-89 |
Width | 120 mm |
Height/depth | 80 mm |
Length | 55 mm |
Connection type | Screwed terminal |
Photobiological safety according to EN 62471 | RG1 |
Colour of light adjustable | No |
Luminous flux adjustable | No |
Beam angle adjustable | No |
E-number Finland | 4533436 |
Brand | KONSTSMIDE |
