LUMINAIRE DP FIT 600 15W CCT ML IP65
LEDVANCE
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Suitable for wall mounting | Yes |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | Yes |
Suitable for built-in mounting | No |
Suitable for surface mounting | Yes |
Suitable for light line configuration | No |
Suitable for clamp-mounting | No |
With mounting material | Yes |
Suitable for workplace according to EN 12464-1 | No |
Lamp type | LED not exchangeable |
With light source | Yes |
Housing material | Plastic |
Surface protection housing | Untreated |
Housing colour | Grey |
Material cover | Plastic, opal |
Type of grid | Other |
Voltage type | AC |
Nominal voltage | 220-240 V |
Nominal current | 70-70 mA |
Type of control gear | Electronic ballast |
With control gear | Yes |
Exchangeable control gear | Yes |
Dimmable | No |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI | No |
Dimming DALI-2 | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off (trailing edge) | No |
Dimming phase cut-on (leading edge) | No |
Dimming programmable | No |
Dimming potentiometer (integrated) | No |
Dimming RF | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
Light distributor | Diffuser lens/optic/panel |
Light distribution | Symmetric |
Beam angle | > 80° - Extreme wide beam |
Colour consistency (McAdam ellipse) | SDCM5 |
Light outlet | Direct |
Energy efficiency class of the light source according to EU regulation 2019/2015 | C |
Rated lifetime L70/B50 at 25 °C | 100000 h |
Degree of protection (IP), front side | IP65 |
Max. number of luminaires per miniature circuit breaker C10 (MCB) | 42 |
Max. number of luminaires per miniature circuit breaker B16 (MCB) | 53 |
Max. number of luminaires per miniature circuit breaker C16 (MCB) | 68 |
Impact strength | IK08 |
Protection class according to IEC 61140 | I |
Emergency power supply system | Central (central battery) |
Rated ambient temperature according to IEC 62722-2-1 | -20-40 °C |
Suitable for emergency lighting | Yes |
Emergency function monitoring system | None |
With switch | No |
With presence detector | No |
With movement sensor | No |
With light sensor | No |
Covering of the luminaire with thermally insulating material possible | No |
With air slots | No |
Filament test according to IEC 60695-2-11 | 850 °C - 30 s |
Luminaire efficacy | 150-160 lm/W |
Max. system power | 15 W |
Rated luminous flux according to IEC 62722-2- 1 | 1350-2400 lm |
Colour of light | White |
Colour temperature | 4000-6500 K |
Colour rendering index CRI | 80-89 |
Power factor | 0.9 |
Constant light output (CLO) | No |

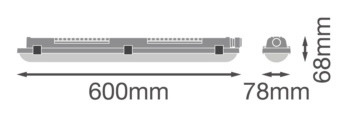

Width | 78 mm |
Height/depth | 68 mm |
Length | 600 mm |
Type of wiring | Suitable for loop-through wiring |
Number of poles | 3 |
Conductor cross section | 1 mm² |
Connection type | Push-in clamp |
Photobiological safety according to EN 62471 | RG0 |
Connectable conductor cross section | 1-1 mm² |
Colour of light adjustable | No |
Luminous flux adjustable | Positions |
Beam angle adjustable | No |
Operation by Bluetooth | No |
Compatible with Casambi | No |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
IFTTT support available | No |
Ball-proof according to DIN 18032-3 | No |
Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C) | No |
E-number Finland | 4325469 |
Brand | LEDVANCE |
