Linear luminaire IP20 Linear Ultra Output
LUMINAIRE LINEAR UO 1200 27W/4050lm
LEDVANCE
With registration you can access the Würth Elektro online shop selection.
Linear Ultra Output is designed for direct replacement of fluorescent tubes and offers an energy-efficient solution for a variety of indoor applications. It is ideal for industrial and commercial halls, public areas, corridors, stairwells and basements. The Tri-proof coating provides effective protection for SMD LED components, improving the durability of the luminaire. Very high luminous efficacy, up to 150 lm/W, ensures bright and energy-efficient lighting. The robust frame and PC diffuser ensure a long service life. Possible to through-wire for increased flexibility and easy installation.
Datasheets(X)
 | |
Lamp type | LED not exchangeable |
With light source | Yes |
Suitable for number of light sources | 0 |
Lamp holder | None |
Material | Steel |
Housing colour | White |
Voltage type | AC |
Nominal voltage | 220-240 V |
Type of control gear | Electronic ballast |
With control gear | Yes |
Exchangeable control gear | Yes |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off | No |
Dimming phase cut-on | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
No dim function | Yes |
Light distributor | Diffuser lens/optic/panel |
Rated life time L70/B50 at 25 °C | 88000 h |
Constant light output (CLO) | No |
Degree of protection (IP) | IP20 |
Protection class | I |
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
Covering of the luminaire with thermally insulating material possible | No |
Suitable for emergency lighting | No |
Emergency power supply integrated | No |
With switch | No |
With movement sensor | No |
Max. system power | 27 W |
Rated luminous flux according to IEC 62722-2-1 | 4050 lm |
Colour temperature | 3000-3000 K |
Colour rendering index CRI | 80-89 |
Power factor | 0.9 |
Colour of light adjustable | No |
Luminous flux adjustable | No |
Beam angle adjustable | No |

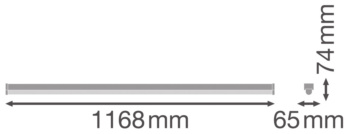

Width | 65 mm |
Height/depth | 74 mm |
Length | 1168 mm |
Type of wiring | Suitable for through wiring |
Number of poles | 2 |
Connection type | Push-in clamp |
Electrical connection with connector system | No |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
IFTTT support available | Yes |
E-number Finland | 4152045 |
Brand | LEDVANCE |
