Emergency luminaire Linespot II Lowbay, IP20
LUMINAIRE LINESPOT II LOWBAY TWT1451WK
Art.-no. WS4281042
EAN 6438045012254
With registration you can access the Würth Elektro online shop selection.
Compact and stylish Linespot II Lowbay is designed especially for corridor lighting. The luminaire is flush-mounted; the size of the installation hole is Ø 75 mm. Linespot II Lowbay’s design is an unobtrusive solution for energy-efficient emergency lighting.
Linespot II Lowbay takes advantage of the latest LED technology and newest optics. It distributes light in a long and narrow pattern, which illuminates the exit route efficiently.
Datasheets(X)
Mounting method | Built-in |
Function | Escape route lighting |
Suitable for labelling type | Sticker |
With pictogram | No |
Monitoring equipment | Safety module for monitoring (central feeded system) |
Wiring system | Continuous circuit/emergency circuit |
With remote switch connection | No |
Power supply system | Central (central battery) |
Lamp type | LED not exchangeable |
With light source | Yes |
Housing material | Plastic |
Housing colour | White |
Material cover | Without cover |
Voltage type | AC/DC |
Nominal voltage | 220-240 V |
Type of control gear | LED operating device current-controlled |
Degree of protection (IP) | IP20 |
Protection class | I |
Rated luminous flux according to IEC 62722-2-1 | 250 lm |

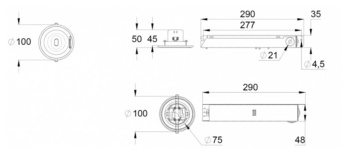

Width | 100 mm |
Height/depth | 50 mm |
Length | 100 mm |
Outer diameter | 100 mm |
Built-in height/depth | 45 mm |
Built-in diameter | 75 mm |
Type of wiring | Suitable for through wiring |
Number of poles | 3 |
Conductor cross section | 2.5 mm² |
Connection type | Other |
E-number Finland | 4281042 |
