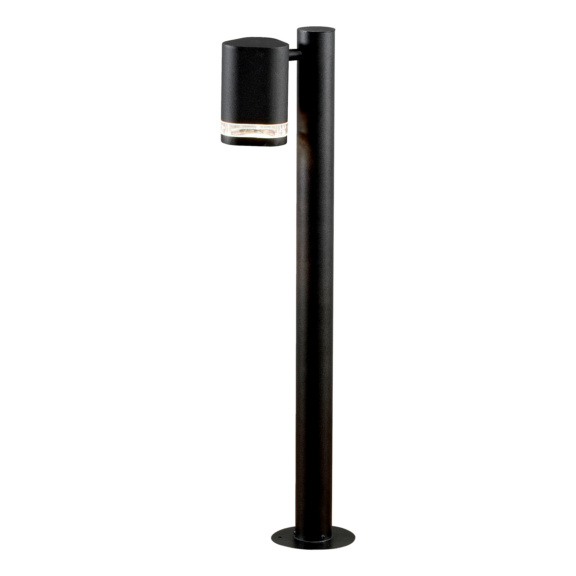

LUMINAIRE MODENA 7517-750 IP44 GU10 BK
KONSTSMIDE
Art.-no. WS4109903
EAN 7318307517750
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Type of luminaire | Bollard luminaire |
With base plate | No |
With light sensor | No |
With movement sensor | No |
Lamp type | HV halogen lamp |
With light source | No |
Suitable for number of light sources | 1 |
Lamp holder | GU10 |
Housing material | Aluminium |
Surface protection | Powder coating |
Housing colour | Black |
Material cover | Glass transparent |
Voltage type | AC |
Nominal voltage | 230-243 V |
Degree of protection (IP) | IP44 |
Protection class according to IEC 61140 | I |
Suitable for lamp power | 0-35 W |
Light distribution | Symmetric |
Light outlet | Direct/indirect |

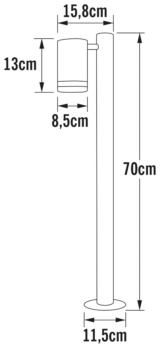

Width | 115 mm |
Height/depth | 700 mm |
Length | 190 mm |
Type of wiring | Ending |
Connection type | Screwed terminal |
E-number Finland | 4109903 |
Brand | KONSTSMIDE |
