Wall luminaire IP44 MODENA
IP44
LUMINAIRE MODENA 7657-750 IP44 GU10 BK
KONSTSMIDE
Art.-no. WS4109673
EAN 7318307657753
With registration you can access the Würth Elektro online shop selection.
The Konstsmide Modena product line offers versatile solutions for outdoor lighting in homes and properties – stylish and practical.
Wall luminaires are available in downward, up-down and directional models. Depending on the model, the housing is made of painted aluminium, galvanized steel or stainless steel. The luminaires mainly use a GU10 lamps and are ordered separately.
Datasheets(X)
 | |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | No |
Suitable for built-in mounting | No |
Suitable for surface mounting | No |
Suitable for light line configuration | No |
Lamp type | HV halogen lamp |
With light source | No |
Suitable for number of light sources | 1 |
Lamp holder | GU10 |
Housing material | Aluminium |
Surface protection housing | Powder coating |
Housing colour | Black |
Material cover | Glass transparent |
Voltage type | AC |
Nominal voltage | 230-240 V |
Light sharing | Symmetric |
Light outlet | Direct/indirect |
Degree of protection (IP) | IP44 |
Protection class | I |
With movement sensor | No |
With light sensor | No |
Suitable for lamp power | 0-35 W |

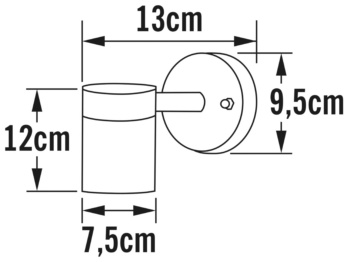

Width | 90 mm |
Height/depth | 120 mm |
Length | 130 mm |
Type of wiring | Ending |
Connection type | Screwed terminal |
E-number Finland | 4109673 |
Brand | KONSTSMIDE |
