Suitable for wall mounting

No

Suitable for suspended mounting

Yes

Suitable for ceiling mounting

Yes

Suitable for built-in mounting

Yes

Suitable for surface mounting

Yes

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

Yes

Lamp type

LED exchangeable

With light source

Yes

Suitable for number of light sources

1

Housing material

Aluminium

Surface protection housing

Other

Housing colour

White

Material cover

Plastic, transparent

Type of grid

None

Voltage type

AC

Nominal voltage

220-240 V

Nominal current

111.1-121.2 mA

Type of control gear

LED operating device current-controlled

With control gear

Yes

Exchangeable control gear

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

Dimming DALI

No

Dimming DMX

No

Dimming DSI

No

Dimming potentiometer (integrated)

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off

No

Dimming phase cut-on

No

Dimming programmable

No

Dimming RF

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Light distributor

Diffuser lens/optic/panel

Light sharing

Symmetric

Beam angle

Wide beam 41-80°

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct

Rated life time L70/B50 at 25 °C

100000 h

Max. number of luminaires per miniature circuit breaker B16 (MCB)

62

Max. number of luminaires per miniature circuit breaker C16 (MCB)

62

Impact strength

IK03

Protection class

I

Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24

No

Rated ambient temperature according to IEC 62722-2-1

5-50 °C

Suitable for emergency lighting

Yes

With movement sensor

No

With light sensor

No

Covering of the luminaire with thermally insulating material possible

No

Filament test according to IEC 60695-2-11

650 °C - 30 s

Max. system power

24 W

Colour temperature

3000-4000 K

Colour rendering index CRI

80-89

Power factor

0.9

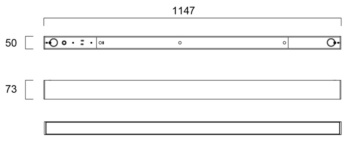

Width

50 mm

Height/depth

73 mm

Length

1147 mm

Type of wiring

Through wiring included

Number of poles

3

Conductor cross section

1.5 mm²

Connection type

Push-in clamp

Photobiological safety according to EN 62471

RG0

Unified Glare Ratio (UGR)

19

Colour of light adjustable

No

Luminous flux adjustable

Positions

Beam angle adjustable

No

E-number Finland

4170587

Brand

SYLVANIA
