Suitable for suspended mounting

No

Suitable for ceiling mounting

Yes

Suitable for built-in mounting

No

Suitable for surface mounting

Yes

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

No

Lamp type

LED not exchangeable

With light source

Yes

Housing material

Plastic

Surface protection housing

Untreated

Housing colour

Black

Material cover

Plastic matt/satinized

Type of grid

None

Voltage type

AC

Nominal voltage

220-240 V

Nominal current

2-100 mA

Type of control gear

Electronic transformer

With control gear

Yes

Exchangeable control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

Dimming DALI

No

Dimming DMX

No

Dimming DSI

No

Dimming potentiometer (integrated)

No

Dimming manufacturer's proprietary system

Yes

Dimming mains voltage modulation

No

Dimming phase cut-off

No

Dimming phase cut-on

No

Dimming programmable

Yes

Dimming RF

Yes

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

Yes

Light distributor

Diffuser lens/optic/panel

Light sharing

Symmetric

Beam angle

Extreme wide beam >80°

Colour consistency (McAdam ellipse)

SDCM3

Light outlet

Direct

Rated life time L70/B50 at 25 °C

100000 h

Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)

94 %

Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)

91 %

Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)

86 %

Max. number of luminaires per miniature circuit breaker B16 (MCB)

160

Max. number of luminaires per miniature circuit breaker C16 (MCB)

160

Impact strength

IK07

Protection class

II

Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24

No

Rated ambient temperature according to IEC 62722-2-1

-25-35 °C

Suitable for emergency lighting

No

With movement sensor

No

With light sensor

No

With air slots

No

Filament test according to IEC 60695-2-11

650 °C - 30 s

Suitable for lamp power

0-22 W

Max. system power

22 W

Colour of light

White

Colour temperature

2200-4000 K

Flickering value Pst LM

0.1

Colour rendering index CRI

90-100

Power factor

0.9

Stroboscope effect value SVM

0.4

Constant light output (CLO)

No

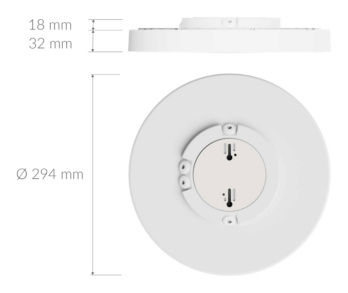

Width

294 mm

Height/depth

50 mm

Length

294 mm

Outer diameter

294 mm

Built-in length

0 mm

Built-in width

0 mm

Built-in height/depth

0 mm

Built-in diameter

0 mm

Type of wiring

Suitable for through wiring

Number of poles

2

Conductor cross section

2.5 mm²

Connection type

Push-in clamp

Photobiological safety according to EN 62471

RG1

Unified Glare Ratio (UGR)

25

Colour of light adjustable

Continuously variable

Luminous flux adjustable

Continuously variable

Beam angle adjustable

No

Compatible with Apple HomeKit

Yes

Compatible with Google Assistant

Yes

Compatible with Amazon Alexa

Yes

IFTTT support available

No

E-number Finland

4125218
