Surface mounted luminaire Surface Square IP44 3CCT Sensor

LUMINAIRE SF SQUARE IP44 24W 3CCT SENSOR
LEDVANCE

Art.-no. WS4136275
EAN 4099854042058

-
Surface mounted luminaire Surface Square IP44 3CCT Sensor

Art.-no. WS4136275

-
Quantity
PU
x 5

Show availability at another Center
Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

LEDVANCE SURFACE SQUARE luminaire are splash-proof square-shaped surface-mounted luminaire, the most common applications are bathrooms and stairwells.

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Suitable for suspended mounting

No

Suitable for ceiling mounting

Yes

Suitable for built-in mounting

No

Suitable for surface mounting

Yes

Suitable for light line configuration

No

Suitable for workplace according to EN 12464-1

No

Lamp type

LED not exchangeable

With light source

Yes

Suitable for number of light sources

0

Housing material

Steel

Surface protection housing

Powder coating

Housing colour

White

Type of grid

Matt

Voltage type

AC

Nominal voltage

220-240 V

Nominal current

115-115 mA

Type of control gear

Electronic ballast

With control gear

Yes

Exchangeable control gear

Yes

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

Dimming DALI

No

Dimming DMX

No

Dimming DSI

No

Dimming potentiometer (integrated)

No

Dimming LineSwitch

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off

No

Dimming phase cut-on

No

Dimming programmable

No

Dimming RF

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

No dim function

Yes

Light outlet

Direct

Max. number of luminaires per miniature circuit breaker B16 (MCB)

104

Max. number of luminaires per miniature circuit breaker C16 (MCB)

106

Degree of protection (IP)

IP44

Impact strength

IK03

Protection class

I

Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24

No

Rated ambient temperature according to IEC 62722-2-1

-20-40 °C

Suitable for emergency lighting

No

Emergency power supply integrated

No

With movement sensor

Yes

With light sensor

Yes

Covering of the luminaire with thermally insulating material possible

No

With air slots

No

Max. system power

24 W

Luminaire efficacy

83 lm/W

Rated luminous flux according to IEC 62722-2-1

2000 lm

Colour of light

White

Colour temperature

3000-3000 K

Colour rendering index CRI

80-89

Power factor

0.7

Constant light output (CLO)

No

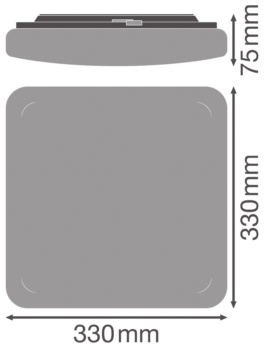

Width

330 mm

Height/depth

75 mm

Length

330 mm

Type of wiring

Ending

Number of poles

2

Connection type

Push-in clamp

Photobiological safety according to EN 62471

RG0

Colour of light adjustable

Positions

Luminous flux adjustable

No

Beam angle adjustable

No

Operation by Bluetooth

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

Yes
