Wall luminaire IP54 VEGA
IP54, replaceable LED
LUMINAIRE VEGA 412-320 IP54 8W GA
KONSTSMIDE
With registration you can access the Würth Elektro online shop selection.
Vega wall luminaires represent a classic design that brings the aesthetics of a traditional stable lantern to modern outdoor lighting.
Datasheets(X)
 | |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | No |
Suitable for built-in mounting | No |
Suitable for surface mounting | No |
Lamp type | LED exchangeable |
With light source | Yes |
Suitable for number of light sources | 1 |
Lamp holder | Other |
Housing material | Aluminium |
Surface protection housing | Galvanized |
Housing colour | Aluminium |
Material cover | Glass transparent |
Voltage type | AC |
Nominal voltage | 230-240 V |
Light sharing | Symmetric |
Light outlet | Direct |
Degree of protection (IP) | IP54 |
Protection class | I |
With movement sensor | No |
With light sensor | No |
Covering of the luminaire with thermally insulating material possible | No |
Max. system power | 8 W |
Rated luminous flux according to IEC 62722-2-1 | 700 lm |
Colour of light | White |
Colour temperature | 3000-3000 K |
Colour rendering index CRI | 80-89 |

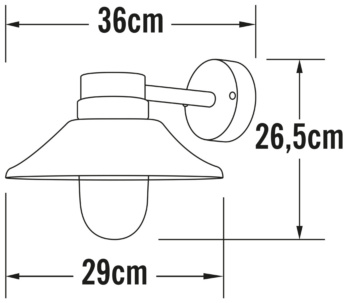

Width | 290 mm |
Height/depth | 265 mm |
Length | 360 mm |
Outer diameter | 0 mm |
Built-in length | 0 mm |
Built-in width | 0 mm |
Built-in height/depth | 0 mm |
Built-in diameter | 0 mm |
Connection type | Screwed terminal |
Photobiological safety according to EN 62471 | RG1 |
E-number Finland | 4109864 |
Brand | KONSTSMIDE |
