LUMINAIRE ZONESPOT II LOWBAY Y9252WM
TEKNOWARE
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Mounting method | Ceiling surface mounting |
Function | Escape route lighting |
Monitoring equipment | Automatic self test |
With remote switch connection | No |
Power supply system | Peripheral (individual battery) |
Battery quality | NiMH |
Lamp type | LED not exchangeable |
Suitable for number of light sources | 1 |
Housing material | Plastic |
Housing colour | White |
Voltage type | AC |
Nominal voltage | 220-240 V |
Type of control gear | LED operating device current-controlled |
Exchangeable control gear | Yes |
Light distributor | Diffuser lens/optic/panel |
Degree of protection (IP) | IP44 |
Protection class | II |
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
Rated ambient temperature according to IEC 62722-2-1 | 0-35 °C |
Rated luminous flux according to IEC 62722-2-1 | 255 lm |
Nominal operation time | 1-1 h |

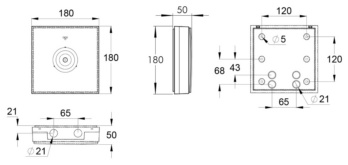

Width | 180 mm |
Height/depth | 50 mm |
Length | 180 mm |
Type of wiring | Suitable for through wiring |
Number of poles | 3 |
Conductor cross section | 2.5 mm² |
Connection type | Screw connection |
E-number Finland | 4281537 |
Brand | TEKNOWARE |
