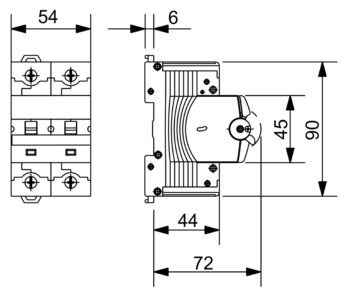

Built-in depth

72 mm

Release characteristic

D

Number of poles (total)

2

Number of protected poles

2

Rated current

63 A

Rated voltage

400 V

Rated insulation voltage Ui

500 V

Rated impulse withstand voltage Uimp

6 kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

10 kA

Voltage type

AC

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

10 kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

20 kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

16 kA

Frequency

50-60 Hz

Flush-mounted installation

No

Concurrently switching neutral conductor

No

Over voltage category

4

Pollution degree

2

Additional equipment possible

Yes

Width in number of modular spacings

3

Degree of protection (IP)

IP20

Ambient temperature during operating

-25-60 °C

Connectable conductor cross section multi-wired

50-50 mm²

Connectable conductor cross section solid-core

70-70 mm²

Explosion-proof

No

E-number Finland

3202597
