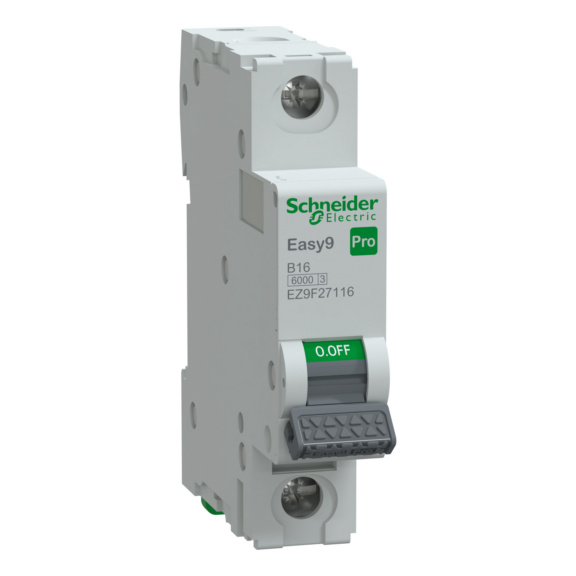

MCB EASY9 1-P B16A EZ9F27116
SCHNEIDER ELECTRIC
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
Release characteristic | B |
Number of poles (total) | 1 |
Number of protected poles | 1 |
Rated current | 16 A |
Rated voltage | 240 V |
Rated insulation voltage Ui | 500 V |
Rated impulse withstand voltage Uimp | 4 kV |
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 6 kA |
Voltage type | AC |
Frequency | 50-60 Hz |
Current limiting class | 3 |
Flush-mounted installation | No |
Concurrently switching neutral conductor | No |
Overvoltage category | 3 |
Pollution degree | 3 |
Additional equipment possible | Yes |
Width in number of modular spacings | 1 |
Degree of protection (IP) | IP20 |
Ambient temperature during operating | -30-70 °C |
Connectable conductor cross section multi-wired | 1-16 mm² |
Connectable conductor cross section solid-core | 1-25 mm² |
Explosion-proof | No |
E-number Finland | 3254551 |
Brand | SCHNEIDER ELECTRIC |
