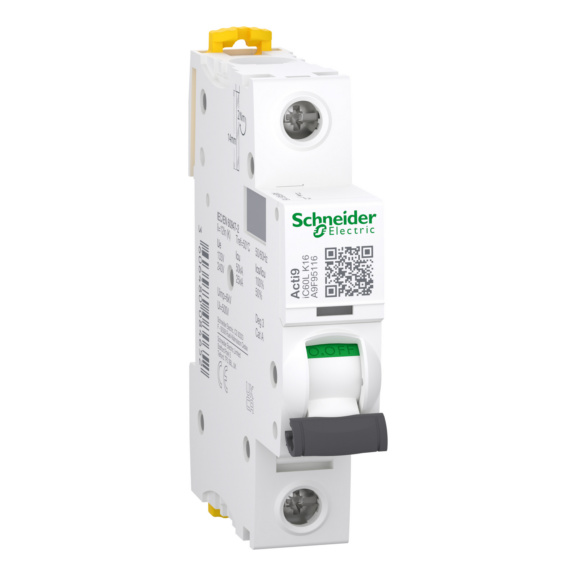

Miniature circuit breaker Acti 9 iC60L

Built-in depth

44.5 mm

Release characteristic

K

Number of poles (total)

1

Number of protected poles

1

Rated current

16 A

Rated voltage

230 V

Rated insulation voltage Ui

500 V

Rated impulse withstand voltage Uimp

6 kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

15 kA

Voltage type

AC/DC

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

25 kA

Frequency

50-60 Hz

Current limiting class

3

Flush-mounted installation

No

Concurrently switching neutral conductor

No

Overvoltage category

4

Pollution degree

3

Additional equipment possible

Yes

Width in number of modular spacings

1

Degree of protection (IP)

IP20

Ambient temperature during operating

-35-70 °C

Connectable conductor cross section multi-wired

1-16 mm²

Connectable conductor cross section solid-core

1-25 mm²

Explosion-proof

No

E-number Finland

3265216

Brand

SCHNEIDER ELECTRIC
