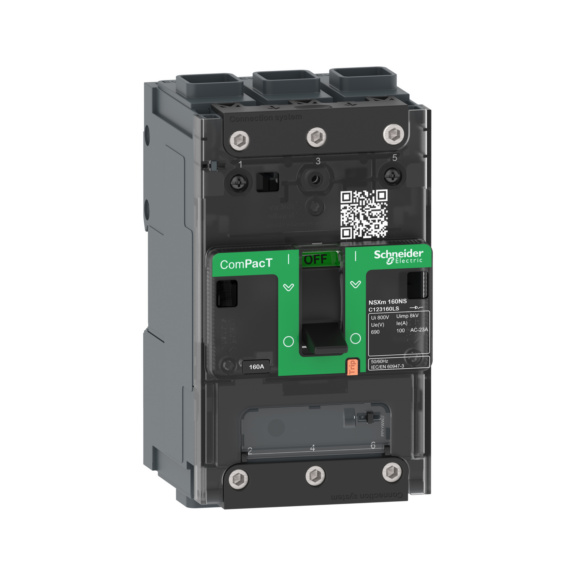

Switch-disconnector ComPacT Schneider
MCCB COMPACT NSXM 160NA 3P 150A
SCHNEIDER ELECTRIC
With registration you can access the Würth Elektro online shop selection.
Compact INS/INV switch-disconnectors are suitable for all low-voltage applications where reliable and secure isolation, separation and switching functions are required.
18 month warranty
Datasheets(X)
Version as main switch | Yes |
Version as maintenance-/service switch | Yes |
Version as safety switch | No |
Version as emergency stop installation | No |
Version as reversing switch | No |
Number of switches | 1 |
Max. rated operation voltage Ue AC | 440 V |
Rated operating voltage | 220-440 V |
Rated permanent current Iu | 160 A |
Rated permanent current at AC-23, 400 V | 160 A |
Rated short-time withstand current lcw | 1.5 kA |
Number of poles | 3 |
Motor drive optional | No |
Motor drive integrated | No |
Voltage release optional | Yes |
Device construction | Built-in device fixed built-in technique |
Suitable for front mounting 4-hole | Yes |
Suitable for front mounting centre | No |
Suitable for distribution board installation | Yes |
Suitable for intermediate mounting | No |
Colour control element | Black |
Type of control element | Wing knob |
Interlockable | No |
Type of electrical connection of main circuit | Screw connection |
Degree of protection (IP), front side | IP40 |
E-number Finland | 3658068 |
Brand | SCHNEIDER ELECTRIC |
