MOD. TRUSS HEAD PIAS 4,2X19 ZP
Art.-no.
02184 19
EAN 4056807002101
-
Show availability at another Center
In order to check the stock in a Würth Elektro branch, please log in.
If you have any questions, please call our service hotline at +358 10 308 4700.
Do you want to register as an Online Shop user? Please go to the registration page.
Exclusively for trade customers
With registration you can access the Würth Elektro online shop selection.
Product information
Datasheets(X)
 | |
Material | Steel |
Surface | Zinc plated |

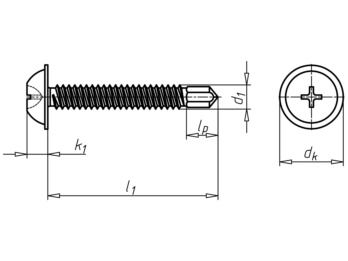

Nominal diameter (d) | 4.2 mm |
Length (l) | 19 mm |
Head diameter (d) | 11.0 mm |
Head height (k) | 2.6 mm |
Drill tip length (l) | 3.7 mm |
Other standard | Company standard |
Head type | Pan head |
Internal drive | H2 |
Thread type | Self-tapping screw thread |
Min. recommended substructure thickness | 1.5 mm |
Max. material thickness to be drilled through (metal) | 3.5 mm |
Max. attachment thickness (l) | 12 mm |
Min./max. recommended installation speed (idling) | 1700-2500 rpm |
RoHS-compliant | Yes |
