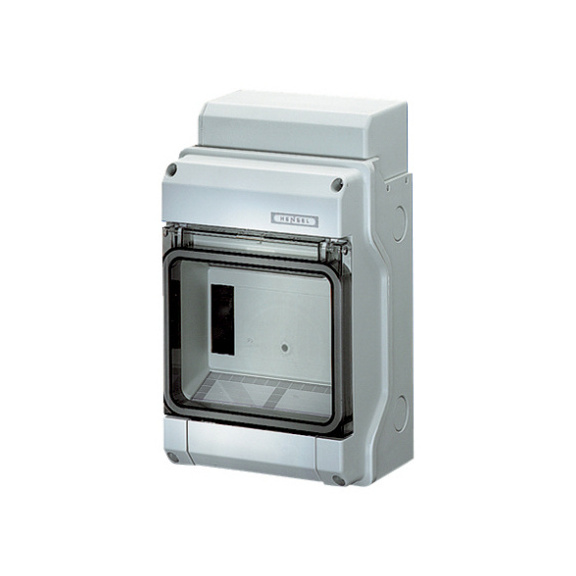

MODULE ENCLOSURE SURFACE IP65 KV9106
Art.-no. WS3430615
EAN 4012591620921
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Number of rows | 1 |
Width in number of modular spacings | 6 |
Type of covering | Door |
Cover model | Closed |
Transparent cover/door | Yes |
Housing material | Plastic |

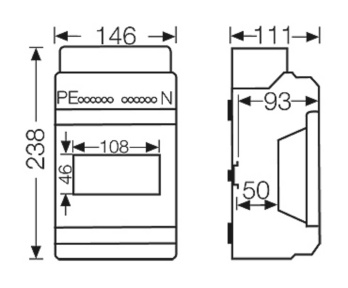

Height | 238 mm |
Width | 146 mm |
Depth | 111 mm |
Built-in depth | 93 mm |
Inner depth | 100 mm |
DIN-rail | Yes |
With mounting plate | No |
Extension possible | Yes |
EMC-version | No |
Colour | Grey |
RAL-number | 7035 |
Degree of protection (IP) | IP65 |
With lock | No |
Type of closure | Other |
E-number Finland | 3430615 |
