Surface-mounted luminaire IP44 Moon - MOON IP44 IK04 E27 320MM WH

Surface-mounted luminaire IP44 Moon - MOON IP44 IK04 E27 320MM WH - 1

Surface-mounted luminaire IP44 Moon

Name: Surface-mounted luminaire IP44 Moon
Brand: HIDE-A-LITE
SKU: WS4143835

MOON IP44 IK04 E27 320MM WH
HIDE-A-LITE

Art.-no. WS4143835

EAN 7392971146379

All versions

Similar products

Surface-mounted luminaire IP44 Moon

Art.-no. WS4143835

Quantity

x 1

Show availability at another Center

Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

Locate Center shop
Login/Register
Call customer service: 010 308 4700

Your feedback for this product

Plafond for interior spaces, such as staircases, storage and closets. Surface mounting. Plenty of space in the fitting and possibility for surface-mounted cable routing. Choose the light source yourself according to the required characteristics (not included).

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents

Suitable for suspended mounting	No
Suitable for built-in mounting	No
Suitable for surface mounting	Yes
Suitable for light line configuration	No
With light source	No
Suitable for number of light sources	2
Lamp holder	E27
Housing material	Plastic
Housing colour	White
Material cover	Plastic, opal
Voltage type	AC
Nominal voltage	220-240 V
Type of control gear	Not required
Light distributor	Diffuser lens/optic/panel
Light sharing	Symmetric
Degree of protection (IP)	IP44
Impact strength	IK04
Protection class	II
Rated ambient temperature according to IEC 62722-2-1	-20-40 °C
Filament test according to IEC 60695-2-11	650 °C - 30 s

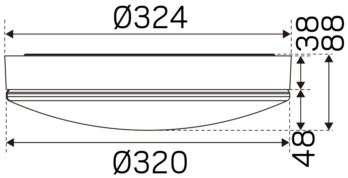

Height/depth	88 mm
Outer diameter	324 mm
Type of wiring	Suitable for through wiring
Number of poles	3
Conductor cross section	2.5 mm²
Connection type	Push-in clamp
